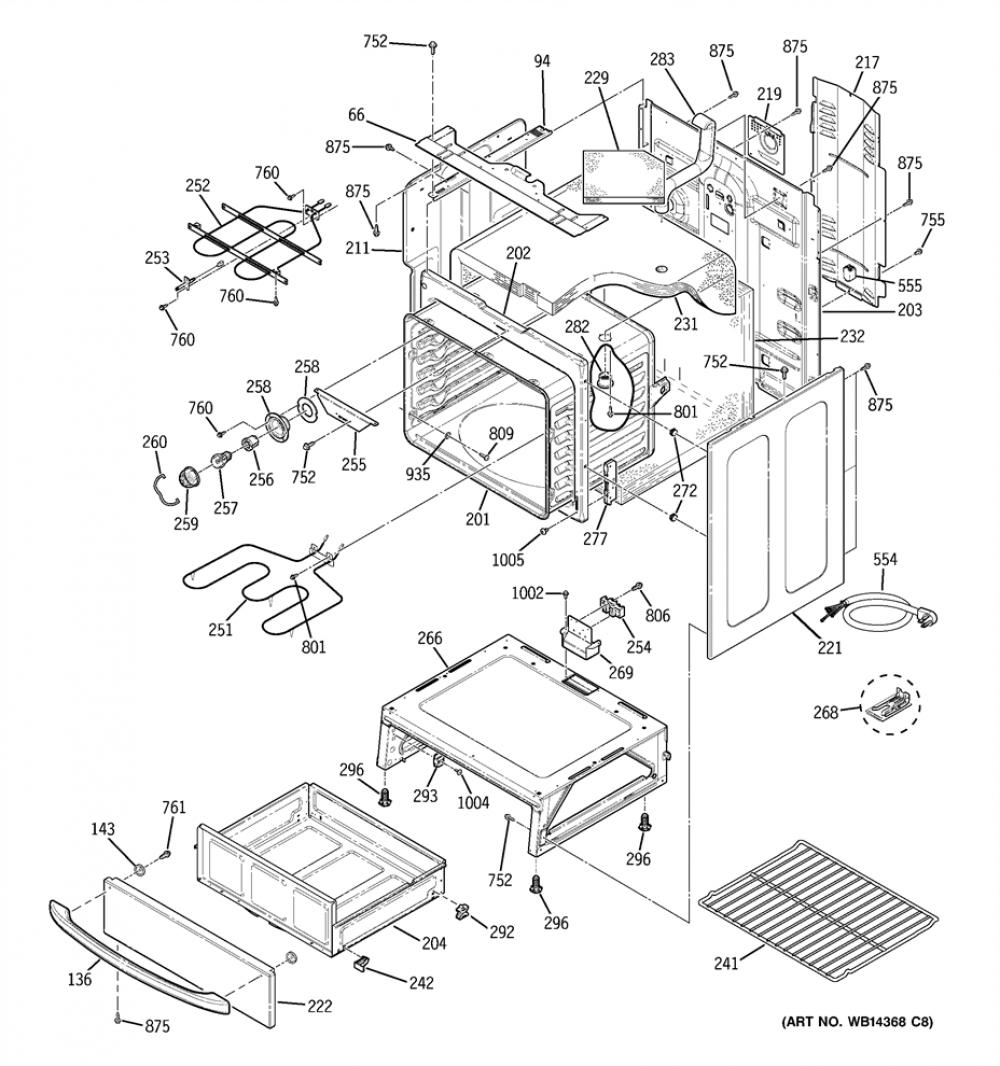

Parts Diagram for JCB710SM2SS: 03-BODYPARTS

See parts diagram(s) for JCB710SM2SS. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.

View Popular
01-CONTROLPANEL
02-COOKTOP
03-BODYPARTS
04-DOOR
05-DOORLOCK

JCB710SM2SS Replacement Parts (OEM) 03-BODYPARTS

Diagram #
94

Chassis Brace - nuine OEM

Chassis Brace, manufactured By

$26.89

1 In Stock

Diagram #
94

Brace for Crisper Drawer Frame - Right - nuine OEM

Brace for Crisper Drawer Frame - Right, manufactured By

$30.89

1 In Stock

Diagram #
204

GE JCB710SM2SS Lower Storage Drawer Assembly - Genuine OEM

Lower Storage Drawer Assembly for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$124.89

Diagram #
217

GE JCB710SM2SS Rear Panel Cover - Genuine OEM

Rear Panel Cover for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$44.89

Diagram #
229

Vent Tube Insulation (OEM)

OEM Vent Tube Insulation, manufactured by GE

$15.89

2 In Stock

Diagram #
231

GE JCB710SM2SS Oven Wrapper Insulation - Genuine OEM

Oven Wrapper Insulation for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$73.89

Diagram #
232

GE JCB710SM2SS Oven Insulation - Genuine OEM

Oven Insulation for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$37.89

Diagram #
241

GE JCB710SM2SS Oven Rack (24x18inches) - rev1 Genuine OEM

Oven Rack (24x18inches) - rev1 for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$53.89

Over 50 In Stock

Diagram #
242

GE JCB710SM2SS Drawer Wedge/Support - Genuine OEM

Drawer Wedge/Support for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$29.89

4 In Stock

Diagram #
251

GE JCB710SM2SS Bake Element (Lower) Genuine OEM

Bake Element (Lower) for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$53.92

Over 100 In Stock

Diagram #
252

GE JCB710SM2SS Oven Broil Element - Genuine OEM

Oven Broil Element for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$76.89

31 In Stock

Diagram #
253

GE JCB710SM2SS Temperature Sensor Assembly Genuine OEM

Temperature Sensor Assembly for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$26.89

Over 100 In Stock

Diagram #
254

GE JCB710SM2SS Range Terminal Block Assembly - Genuine OEM

Range Terminal Block Assembly for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$52.89

Over 50 In Stock

Diagram #
256

GE JCB710SM2SS Range Light Socket - Genuine OEM

Range Light Socket for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE. This light socket is for ranges.

It provides power to the light while holding the light bulb in place.

Unplug the range or shut off the house circuit breaker for the range before installing this part. Wear work gloves to protect your hands.

$14.89

41 In Stock

Diagram #
258

GE JCB710SM2SS Light Cup Assembly - Genuine OEM

Light Cup Assembly for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$15.89

4 In Stock

Diagram #
258

GE JCB710SM2SS Light Cover Seal - Genuine OEM

Light Cover Seal for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$17.89

1 In Stock

Diagram #
266

GE JCB710SM2SS Base Assembly - Genuine OEM

Base Assembly for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$137.89

Diagram #
269

Terminal Block Mount (OEM)

OEM Terminal Block Mount, manufactured by GE

$25.89

3 In Stock

Diagram #
277

Receiver Hin (OEM)

OEM Receiver Hin, manufactured by GE

$34.89

2 In Stock

Diagram #
282

Vent Tube Assembly (OEM)

OEM Vent Tube Assembly, manufactured by GE

$26.89

2 In Stock

Diagram #
283

Radiant Vent Tube (OEM)

OEM Radiant Vent Tube, manufactured by GE

$55.89

1 In Stock

Diagram #
292

GE JCB710SM2SS Rear Drawer Support - Genuine OEM

Rear Drawer Support for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE.

$14.89

43 In Stock

Diagram #
293

GE JCB710SM2SS Front Drawer Support - Genuine OEM

Front Drawer Support for GE JCB710SM2SS Electric Range - Oven/Stove. Genuine product manufactured by GE. This storage drawer support is for ranges.

It keeps the storage drawer level.

Wear work gloves to protect your hands when installing this part.

$14.89

16 In Stock

Diagram #
296

Leveling Leg (OEM)

The Leveling Leg is needed when repairing your appliance and is a nuine OEM (Original Equipment Manufacturer) part from . Eventually parts can wear out on your appliance, when that happens trust nuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results. This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.

$20.89

28 In Stock

Diagram #
554

Power Cord (OEM)

OEM Power Cord, manufactured by GE

$30.89

Over 50 In Stock

Diagram #
875

Screw (OEM)

The Screw is needed when repairing your appliance and is a nuine OEM (Original Equipment Manufacturer) part from . Eventually parts can wear out on your appliance, when that happens trust nuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results. This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.

$15.89

34 In Stock

Diagram #
875

Screw (OEM)

Screw. 2442174, Manufactured by

$35.89

3 In Stock

Diagram #
1002

Screw (OEM)

OEM Screw, manufactured by GE

$15.89

1 In Stock

Diagram #
1005

Screw (OEM) 1032 TR T

$14.89

23 In Stock
