Parts Diagram for:

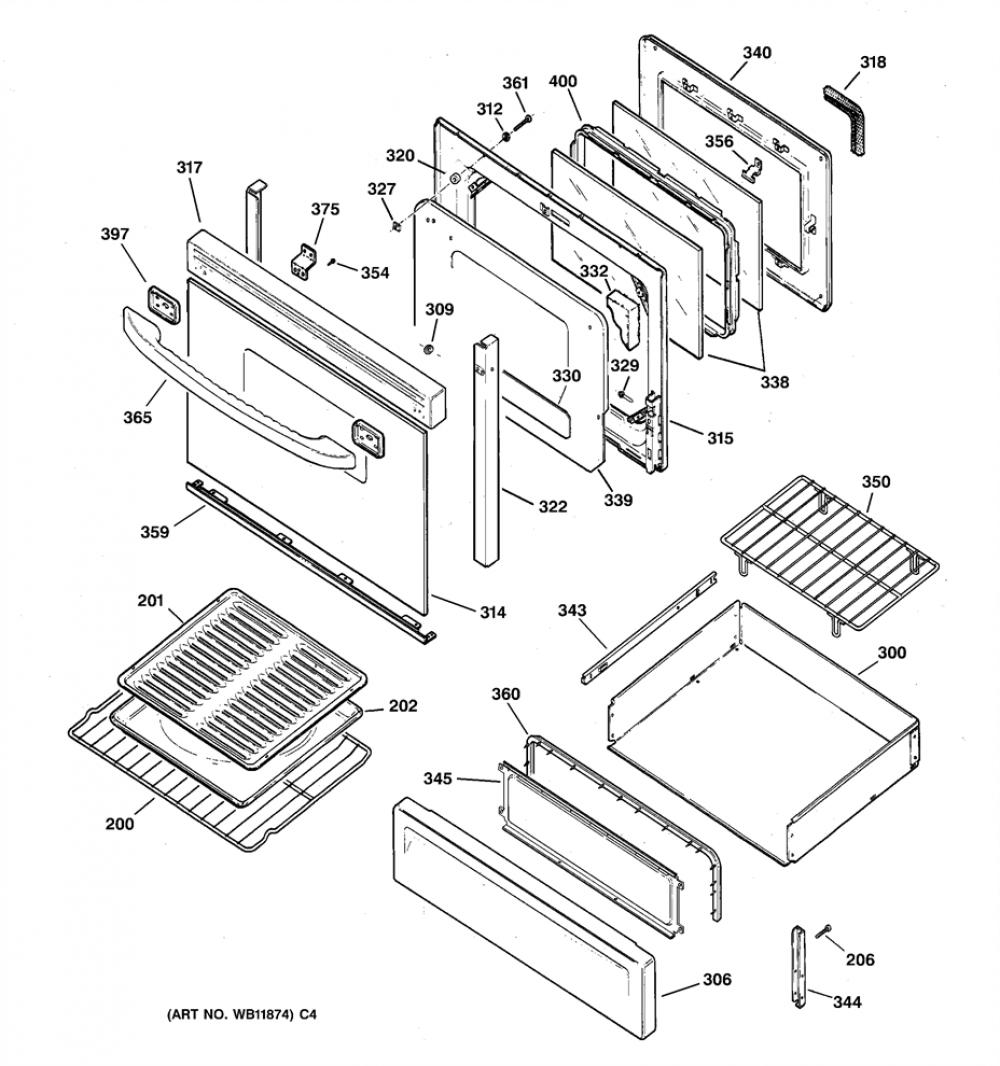

GE JGBP86BEB5BB Range - Oven/Stove: 04-DOOR&DRAWERPARTS
See parts diagram(s) for GE JGBP86BEB5BB Range - Oven/Stove. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
View Popular
01-GAS&BURNERPARTS
02-CONTROLPANEL&COOKTOP
03-BODYPARTS
04-DOOR&DRAWERPARTS
Popular parts for your
GE JGBP86BEB5BB Range - Oven/Stove
Bake Burner for GE JGBP86BEB5BB Range - Oven/Stove. Genuine product manufactured by GE. (Includes Igniter, Does Not Includes Wire Nuts) , manufactured by GE.
Flat Style Oven Igniter Kit for GE JGBP86BEB5BB Range - Oven/Stove. Genuine product manufactured by GE. Oven igniter assembly. Short ceramic style igniter with mounting bracket and wire nuts for installation. Amperage range is 3.3 to 3.6.
Note that the manufacturer has made this igniter to work on a multitude of appliances. The ends may look different which means the connector may need to be cut off and wires spliced to range wiring with porcelain wire nuts. This is for the professional installation.
DYI customers, if you are unsure, have a service technician install this part. Once the part has been modified it cannot be returned.
Double Drip Pan (Right) for GE JGBP86BEB5BB Range - Oven/Stove. Genuine product manufactured by GE. Approx 8 in x 17 in. For left side, order WB34K10010
Orifice-lp Lg 99mm for GE JGBP86BEB5BB Range - Oven/Stove. Genuine product manufactured by GE. This surface burner liquid propane (LP) orifice is for ranges.
It controls the gas coming from surface burner tube.
