Parts Diagram for:
GE JGBP90MEH7BC Range - Oven/Stove: 01-GAS&BURNERPARTS

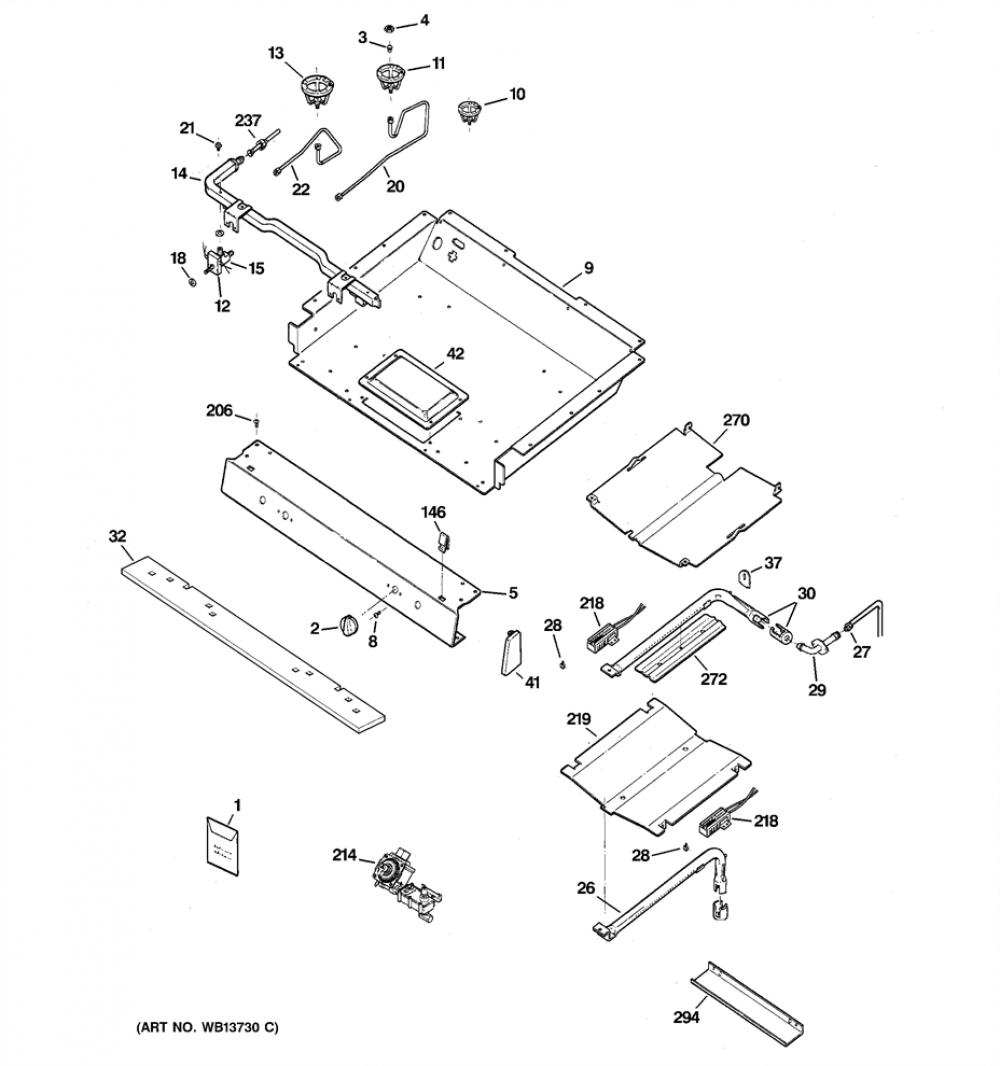

See parts diagram(s) for GE JGBP90MEH7BC Range - Oven/Stove. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
Orifice-lp Lg 99mm for GE JGBP90MEH7BC Range - Oven/Stove. Genuine product manufactured by GE. This surface burner liquid propane (LP) orifice is for ranges.
It controls the gas coming from surface burner tube.
Unplug the range and shut off the gas supply before installing this part. Wear work gloves to protect your hands.
