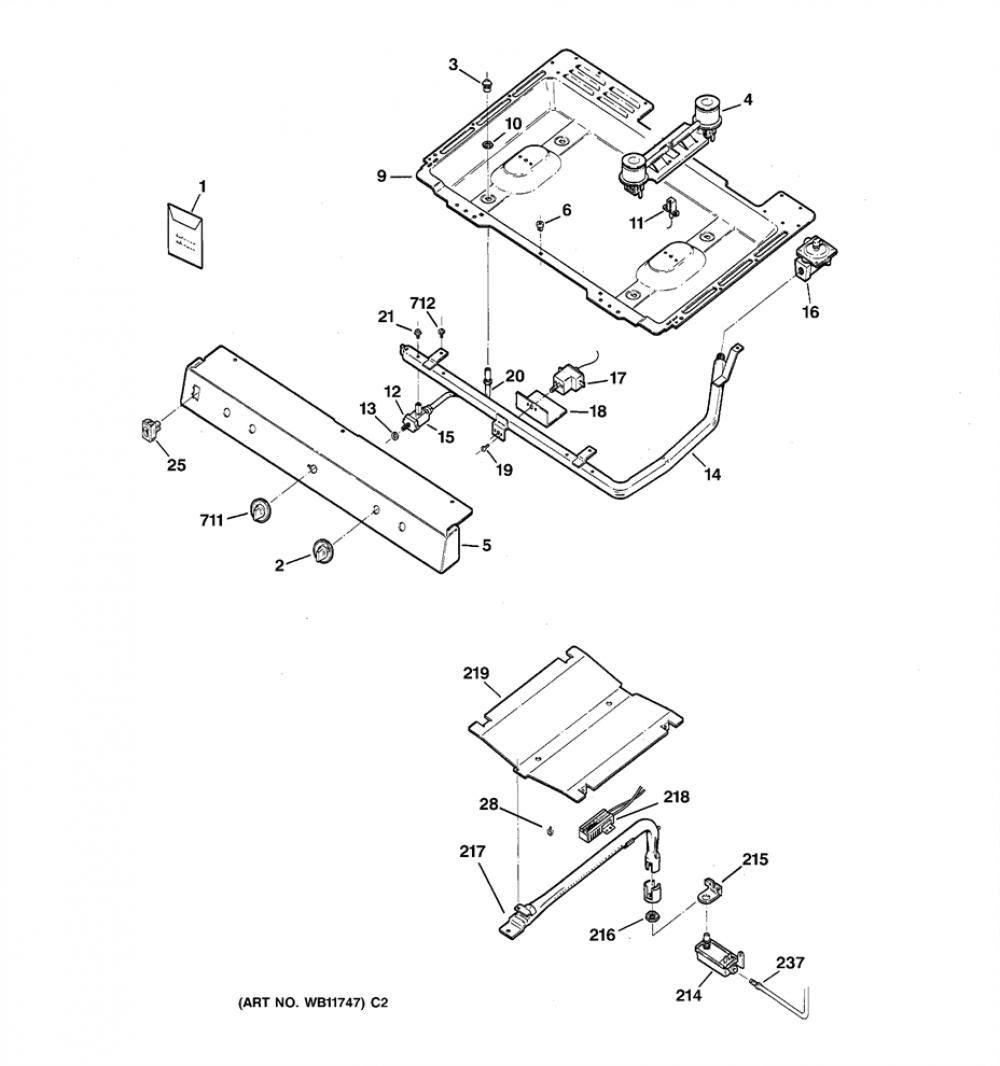

Parts Diagram for GE JGBS07PEW2WW Range - Oven/Stove: 01-GAS&BURNERPARTS

Oven Safety Valve, was replaced by . The new Part, #WB19K31 (also manufactured by GE ) will be shipped upon ordering this product.

Oven Burner Igniter for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE. This is the oven burner tube.

NOTE:

WB16K10043 - Without igniter

WB13K10013 -  With igniter





Oven Wrap Insulation for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Bottom Metal Oven Panel for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Frosted Light Bulb (40watt) for GE JGBS07PEW2WW Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your GE JGBS07PEW2WW.

Broiler Pan for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Rubber Bumper (Black) for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Heat Shield/Deflector for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Flat Style Oven Igniter Kit for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE. Oven igniter assembly. Short ceramic style igniter with mounting bracket and wire nuts for installation. Amperage range is 3.3 to 3.6.

Note that the manufacturer has made this igniter to work on a multitude of appliances. The ends may look different which means the connector may need to be cut off and wires spliced to range wiring with porcelain wire nuts. This is for the professional installation.

DYI customers, if you are unsure, have a service technician install this part. Once the part has been modified it cannot be returned.

Double Burner Assembly for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Oven Safety Valve for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Washer 12Pk for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Oven Thermostat Assembly for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Main Cooktop (White) for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE. According to the manufacturer you must also order the grates WB31K10012 when ordering this cooktop. The original grates will not fit.

Bracket Assembly for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Supply Tube Valve for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Wire Rack for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Door Handle End Cap (White) for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Door Gasket Seal for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Surface Burner Igniter (Front,Left) for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Spark Module (2 + 0) for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Inner Door Glass for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Range Pressure Regulator for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE. This pressure regulator is for ranges.

It limits the incoming gas pressure to a safe and constant level for the burners.

Unplug the range and shut off the gas supply before installing this part. Wear work gloves to protect your hands. Gas line connections must be leak checked after the repair.

Range Top Support Rod for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Range Support Bracket for GE JGBS07PEW2WW Range - Oven/Stove. Genuine product manufactured by GE.

Oven Safety Valve, was replaced by GE. The new Part, #WB19K31 (also manufactured by GE) will be shipped upon ordering this product.

GE OEM Spacer, manufactured by GE

GE OEM Handle Oven Door - white, manufactured by GE

GE OEM Screw (1214), manufactured by GE
