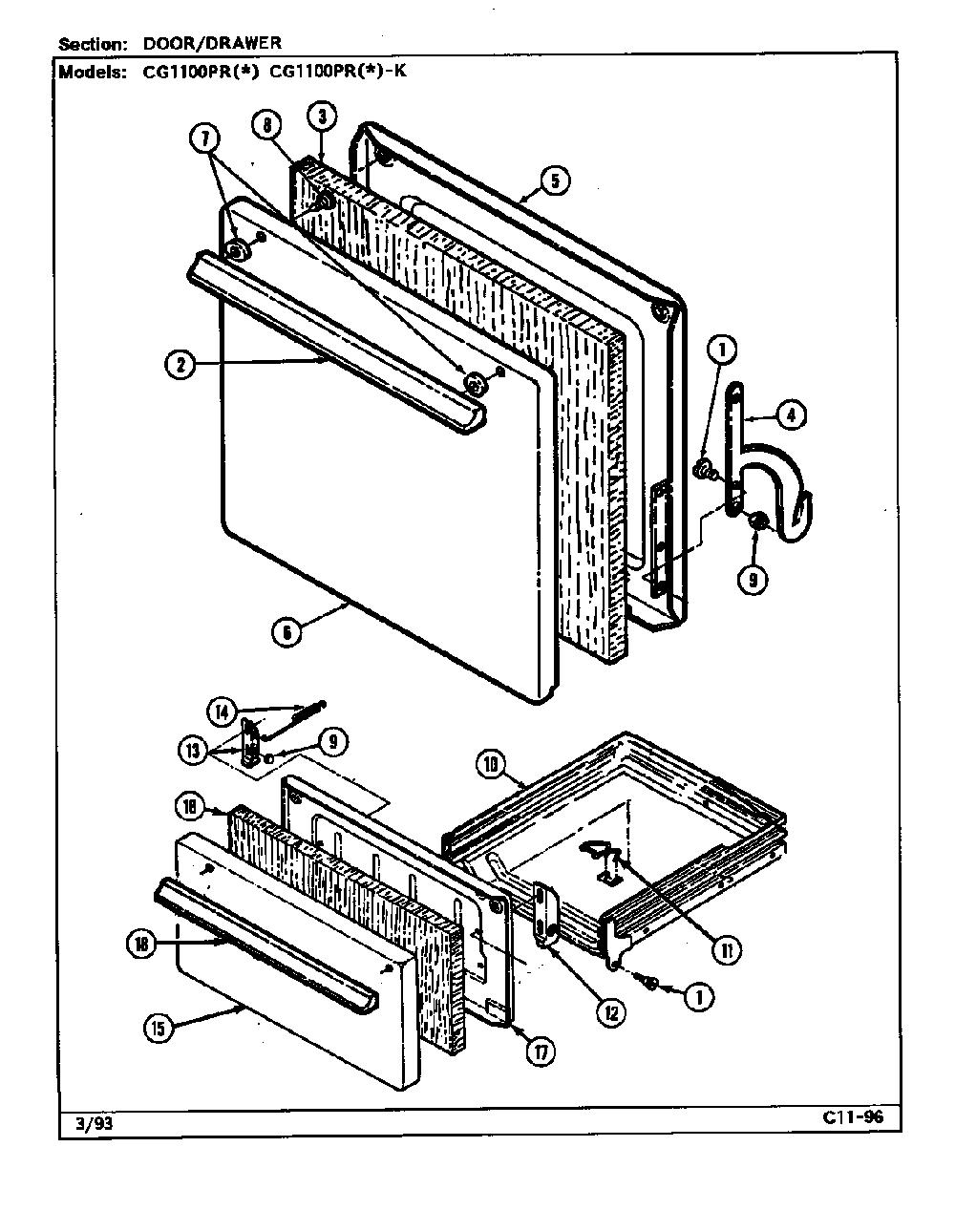

Parts Diagram for Range - Oven/Stove CG1100PRW-K: Door and Drawer
See parts diagram(s) for Range - Oven/Stove CG1100PRW-K. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
View Popular
Top Assembly
Body And Oven
Door and Drawer
Gas Controls
Range - Oven/Stove CG1100PRW-K Replacement Parts (OEM) Door and Drawer
The Screw is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
Broiler Pan and Grid for CG1100PRW-K Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your CG1100PRW-K. Includes the porcelain broiler pan and tray. Size: 1.5 x 12.75 x 16.75 in.
Oven Igniter Kit (Flat Style) for CG1100PRW-K Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your CG1100PRW-K. Part number 12400035 has been substituted to part number 7432P067-60.
This is the oven igniter kit. It can replace igniters for either bake or broil burners. This igniter replaces most flat oven igniters. Does not replace round igniters or igniters with blue ceramic. This replaces shorter and longer igniters in many instances. Amperage range is between 3.3 - 3.6. If the igniter glows for more than 90 seconds without igniting the gas flame, this indicates that the igniter is too weak to open the valve.
IMPORTANT NOTE: The grey coil is very fragile, handle with care.
Additional installation notes:
This igniter is designed to fit many different types of stoves. Sometimes these igniters will not be an exact fit as the wire ends may be different. You may need to cut the connector off the old one and install the wire nut. If you are unsure on how to install this part, please seek help from a service technician for assistance.
