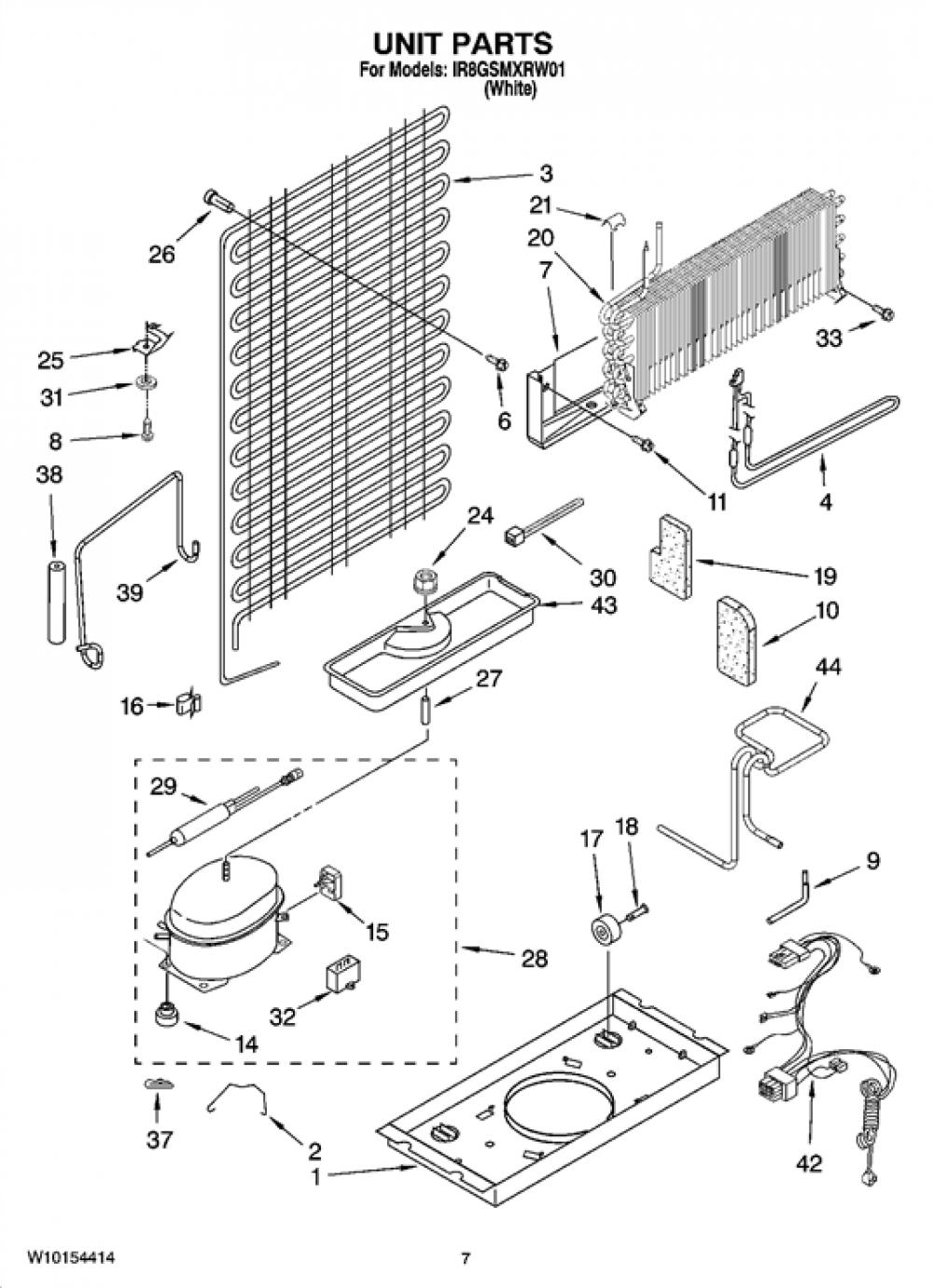

Parts Diagram for Refrigerator IR8GSMXRW01: 04-UNITPARTS
See parts diagram(s) for Refrigerator IR8GSMXRW01. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
