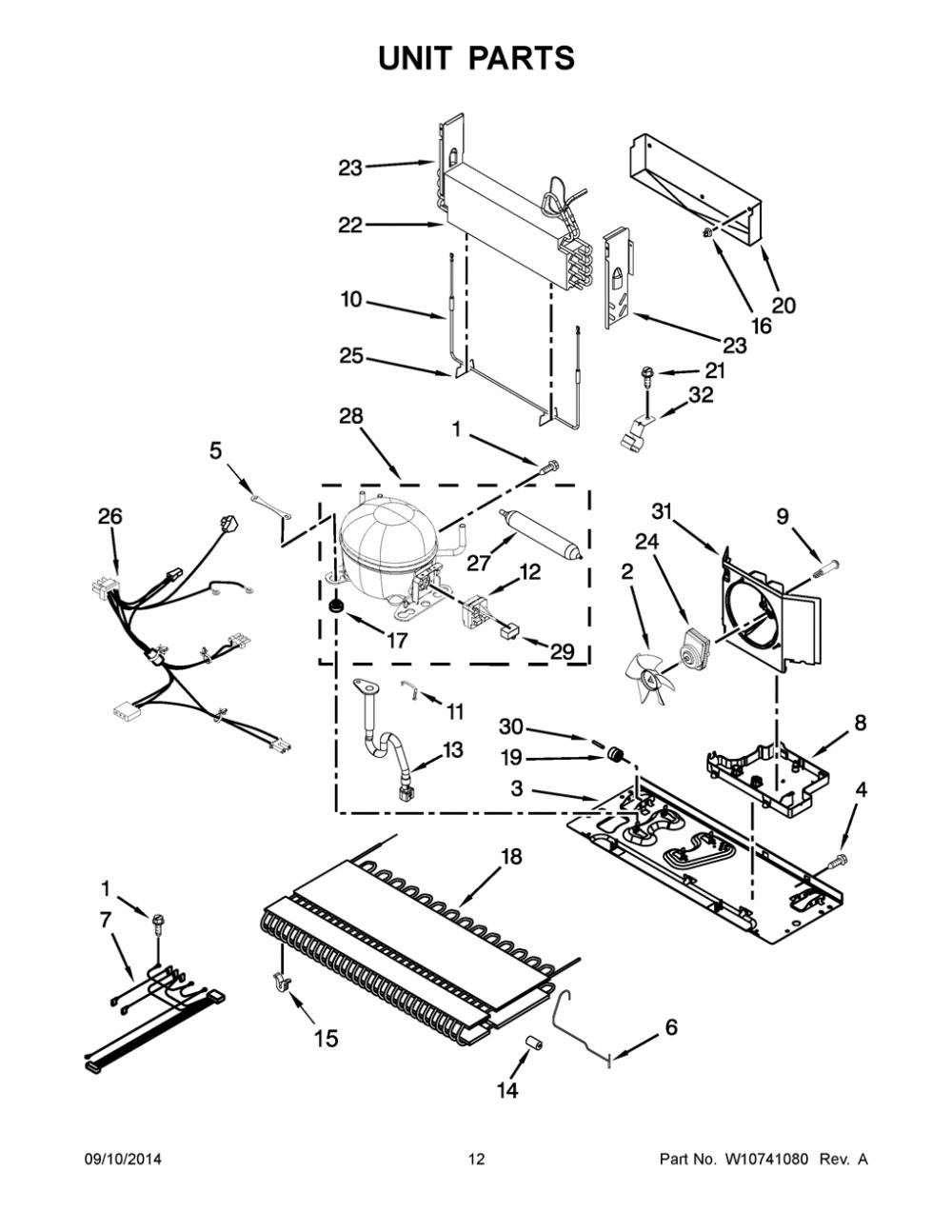

Parts Diagram for Refrigerator IX3HHEXDSM00: 07-UNITPARTS
See parts diagram(s) for Refrigerator IX3HHEXDSM00. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
