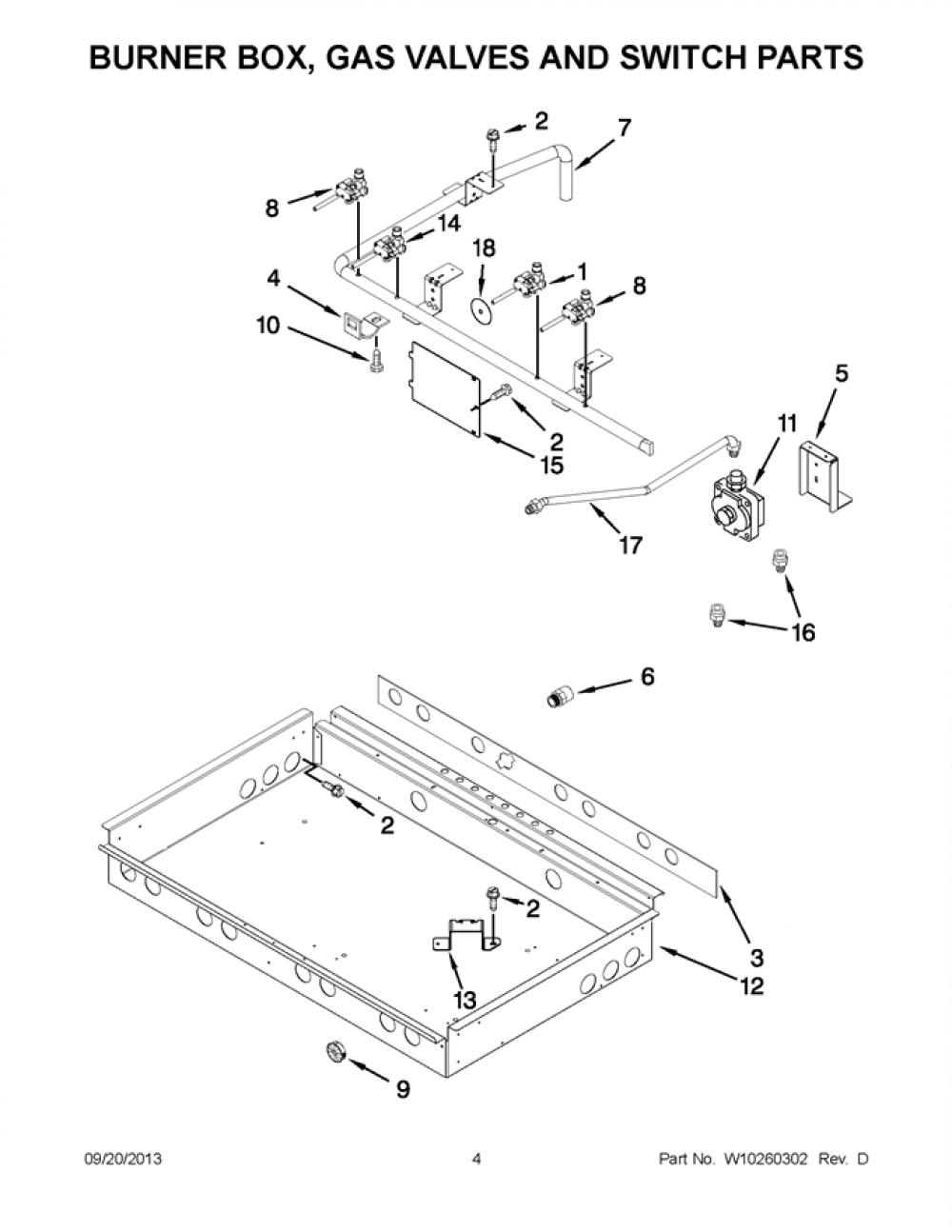

Parts Diagram for KitchenAid KDRS407VSS00 Range - Oven/Stove: 03 - BURNER BOX, GAS VALVES AND SWITCH PARTS
See parts diagram(s) for KitchenAid KDRS407VSS00 Range - Oven/Stove. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
