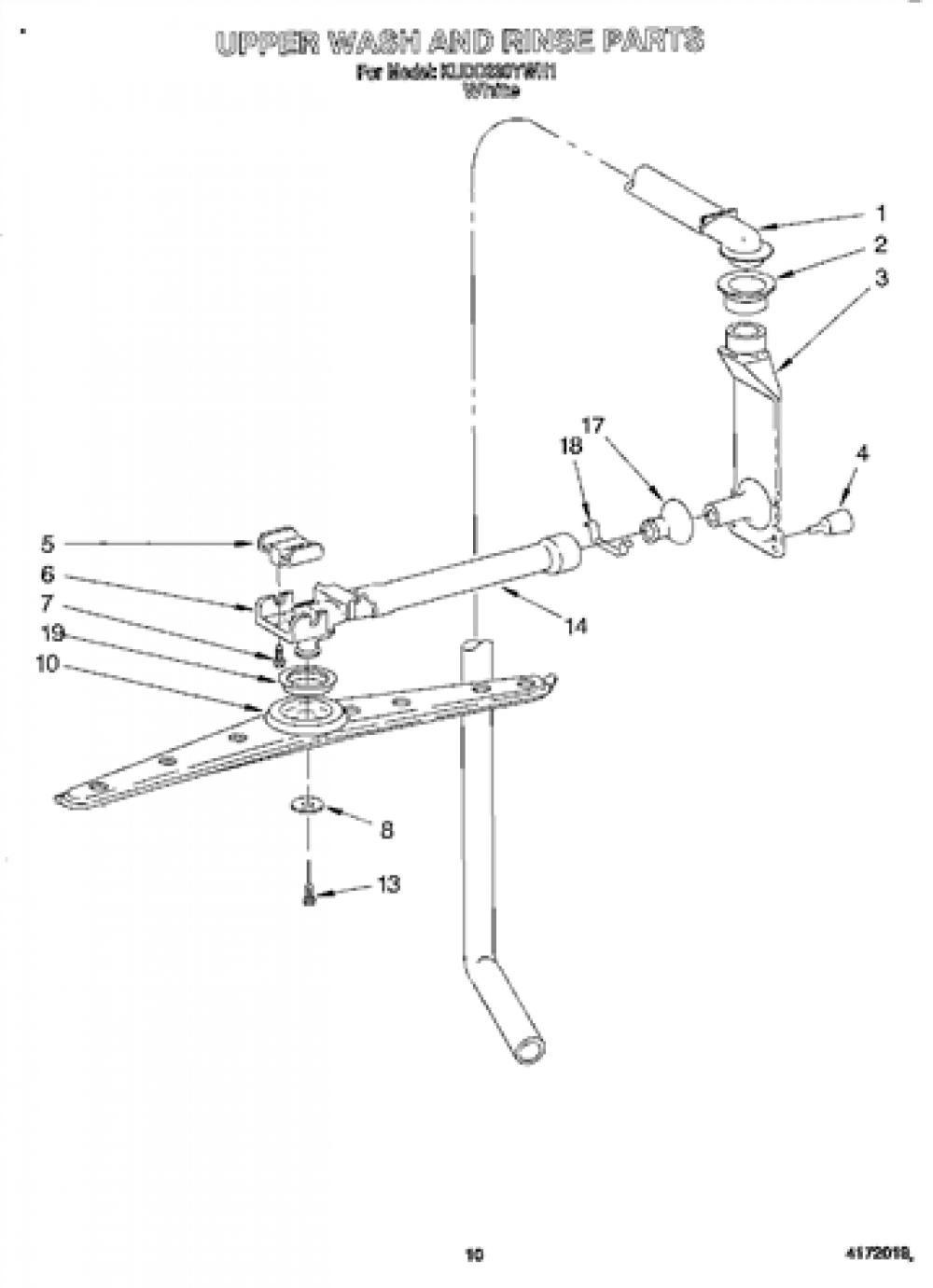

Parts Diagram for KitchenAid KUDD230YWH1 Dishwasher: 08 - UPPER WASH AND RINSE
See parts diagram(s) for KitchenAid KUDD230YWH1 Dishwasher. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
