Parts Diagram for KitchenAid KBRS22KGBT13 Refrigerator: 01 - CABINET PARTS
See parts diagram(s) for KitchenAid KBRS22KGBT13 Refrigerator. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
View Popular

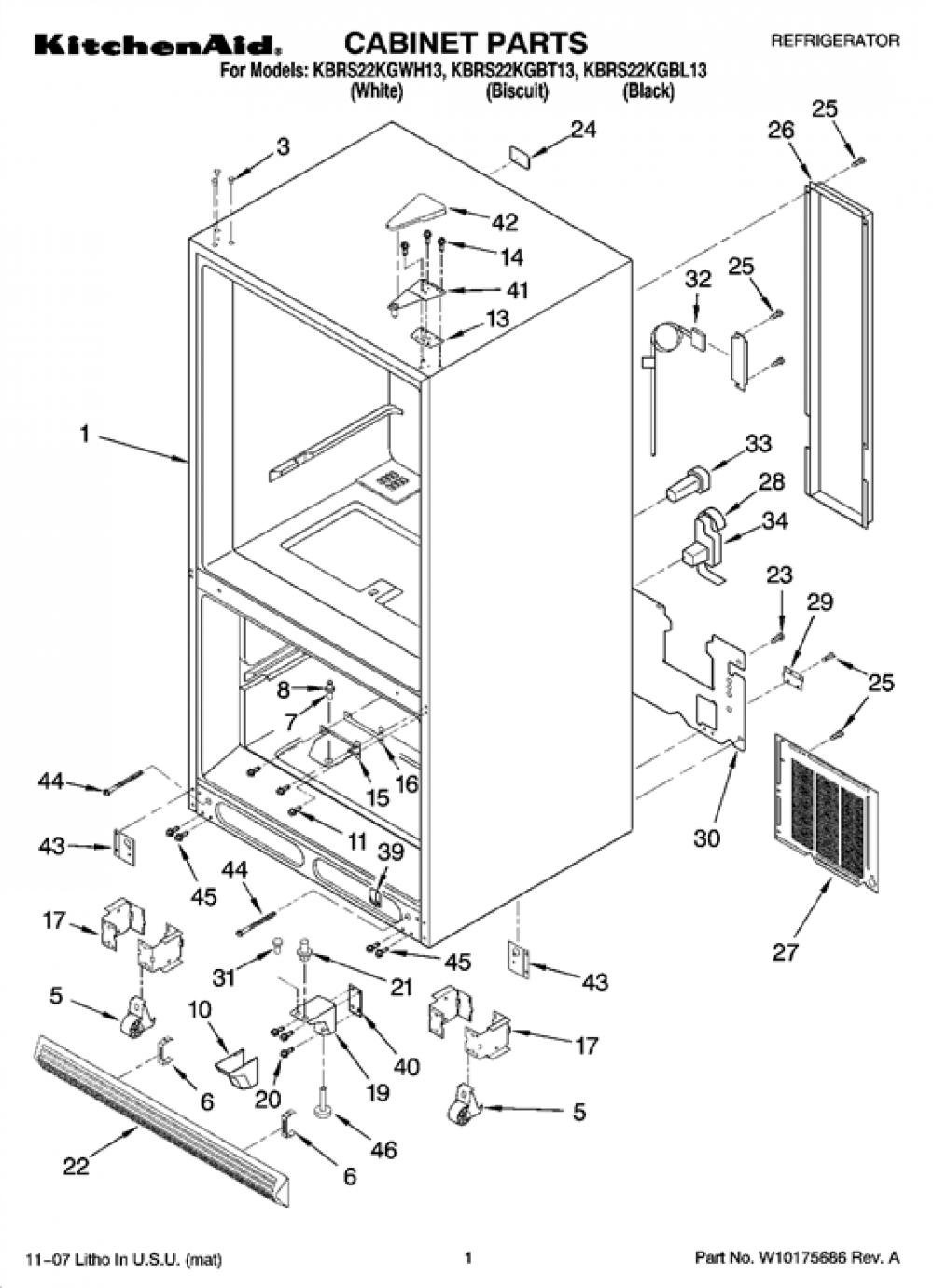

01 - CABINET PARTS
02 - FREEZER LINER PARTS
03 - FREEZER DOOR PARTS
04 - REFRIGERATOR LINER PARTS
05 - REFRIGERATOR DOOR PARTS
06 - UNIT PARTS
07 - SHELF PARTS, OPTIONAL PARTS
Parts for your
KitchenAid KBRS22KGBT13 Refrigerator 01 - CABINET PARTS
Freezer Door Seal-Gasket (black) for KitchenAid KBRS22KGBT13 Refrigerator. Genuine product manufactured by KitchenAid. . Freezer Door Gasket For The Freezer Door. Black In Color. Approximate size: 31.30" X 23.56".
Refrigerator Door Gasket (white) for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13. . 31 1/2" by 38 1/4".
Alumilastic/Adhesive Cement (for icemaker) for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13.
Temperature Control Thermostat for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13.
Door Stop (White) for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13.
Defrost Timer (Left) for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13.
Defrost Thermostat for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13.
Refrigerator Sound Dampener for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13.
Door Gasket (Lower) for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13.
White Touch-Up Paint (0.6 oz) for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13.
Compressor Start Device and Overload for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13.
Compressor Run Capacitor for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13.
Door Switch Assembly (White) for KitchenAid KBRS22KGBT13 Refrigerator. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KBRS22KGBT13.
