Parts Diagram for:

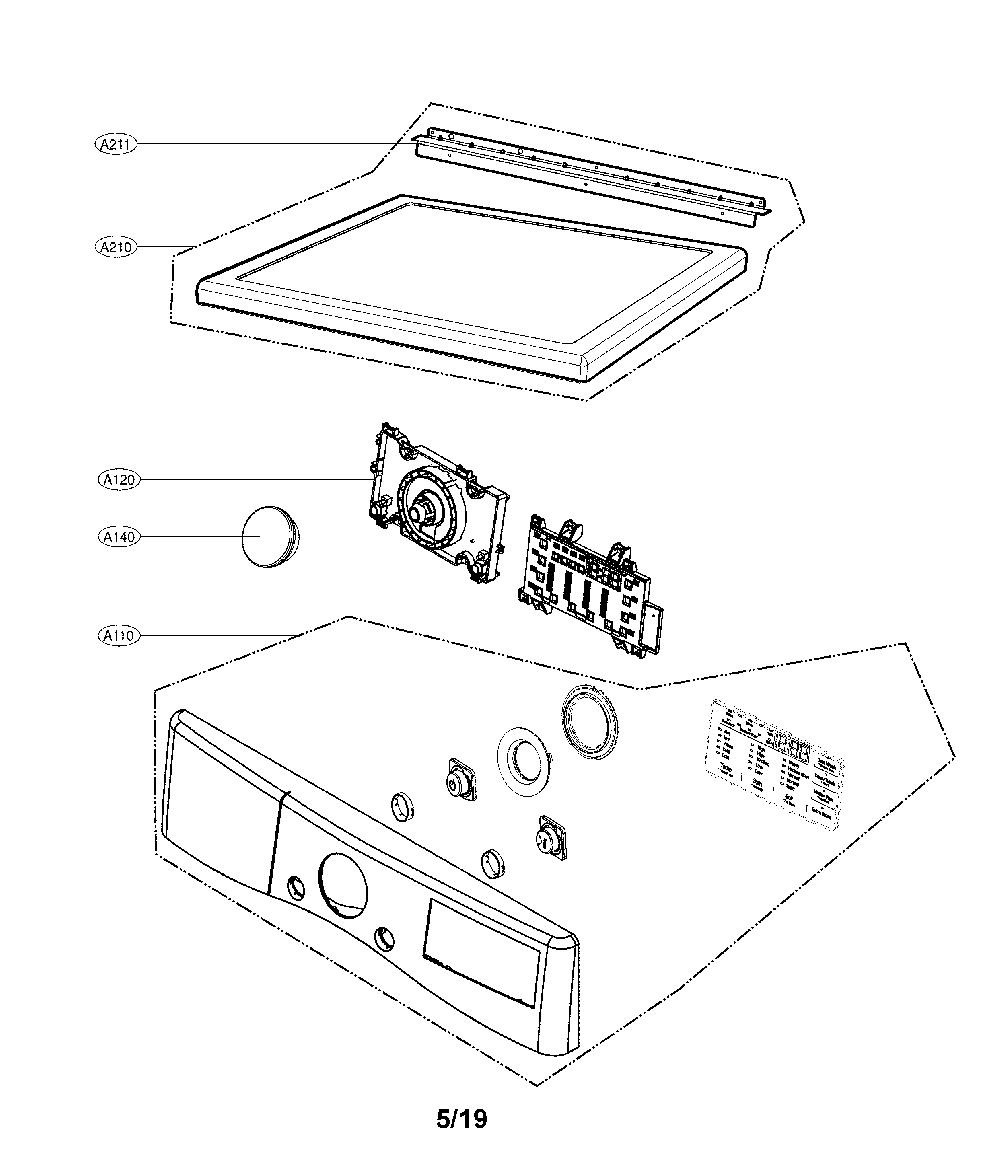

LG DLE3500W: Control Panel and Plate Assembly
See parts diagram(s) for LG DLE3500W. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.

View Popular
Drum and Motor Assembly
Cabinet and Door Assembly
Control Panel and Plate Assembly

Diagram #
00K610NA

LG DLE3500W Dryer Drive Motor - Genuine OEM

Dryer Drive Motor for LG DLE3500W Dryer. Genuine product manufactured by LG. Note: Before replacing the motor, the door switch and thermal fuse should be tested to determine if they are defective.

$281.89

Over 50 In Stock

Diagram #
00A310NA

LG DLE3500W Cabinet Cover Assembly - Genuine OEM

Cabinet Cover Assembly for LG DLE3500W Dryer. Genuine product manufactured by LG.

$241.89

Diagram #
00K540NA

LG DLE3500W Blower Duct Guide - Genuine OEM

Blower Duct Guide for LG DLE3500W Dryer. Genuine product manufactured by LG.

$31.89

3 In Stock

Diagram #
00A495NA

LG DLE3500W Door Hinge Damper - Genuine OEM

Door Hinge Damper for LG DLE3500W Dryer. Genuine product manufactured by LG.

$14.89

40 In Stock

Diagram #
00A600NA

LG DLE3500W Main Wire Harness - Genuine OEM

Main Wire Harness for LG DLE3500W Dryer. Genuine product manufactured by LG.

$205.89

3 In Stock

Diagram #
00A140NA

LG DLE3500W Control Knob - Silver - Genuine OEM

Control Knob - Silver for LG DLE3500W Dryer. Genuine product manufactured by LG.

$53.89

5 In Stock

Diagram #
00K660NA

LG DLE3500W Screw Tapping - Genuine OEM

Screw Tapping for LG DLE3500W Dryer. Genuine product manufactured by LG.

$15.89

17 In Stock

Diagram #
00F150NA

LG DLE3500W Parts Assembly - Genuine OEM

Parts Assembly for LG DLE3500W Dryer. Genuine product manufactured by LG.

$67.89

20 In Stock

Diagram #
00K252NA

LG DLE3500W Screw - Customized - Genuine OEM

Screw - Customized for LG DLE3500W Dryer. Genuine product manufactured by LG.

$15.89

23 In Stock

Diagram #
00A430NA

LG DLE3500W Door Hinge - Genuine OEM

Door Hinge for LG DLE3500W Dryer. Genuine product manufactured by LG.

$85.89

16 In Stock

Diagram #
00A300NA

LG DLE3500W Door Hinge Bracket - Genuine OEM

Door Hinge Bracket for LG DLE3500W Dryer. Genuine product manufactured by LG.

$25.89

Diagram #
00A700NA

Drying Rack - Genuine OEM

Drying Rack, manufactured By

$34.89

16 In Stock

Diagram #
00K145NA

Taptite Screw - Genuine OEM

Taptite Screw, manufactured By

$14.89

5 In Stock

Diagram #
00A210NA

Top Plate Assembly - Genuine OEM

Top Plate Assembly, manufactured By

$162.89

8 In Stock

Diagram #
00A308NA

Screw (OEM) Taptite

OEM Screw (Taptite), manufactured by LG

$16.89

15 In Stock

Diagram #
00A540NA

The Leveling Leg Pad is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from . Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results. This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.

$9.89

Over 50 In Stock

Diagram #
00K320NA

Lint Filter Cover (OEM)

The Guide Cover is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .

NOTE: Due to a manufacturing change, this filter housing may be different from your original. If you have any issues installing your filter, you may need to order new filter ADQ56656403 and new guide MEA49050001 for a proper fit.

This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.

$34.89

Over 100 In Stock

Diagram #
00K336NA

LG DLE3500W Distortion Spring - Genuine OEM

Distortion Spring for LG DLE3500W Dryer. Genuine product manufactured by LG.

$15.89

14 In Stock

Diagram #
00A570NA

LG DLE3500W Terminal Block Cover - Genuine OEM

Terminal Block Cover for LG DLE3500W Dryer. Genuine product manufactured by LG.

$15.89

8 In Stock

Diagram #
00K510NA

LG DLE3500W Dryer Blower Wheel - Genuine OEM

Dryer Blower Wheel for LG DLE3500W Dryer. Genuine product manufactured by LG.

$74.89

32 In Stock

Diagram #
00F140NA

LG DLE3500W Cycling Thermostat - Genuine OEM

Cycling Thermostat for LG DLE3500W Dryer. Genuine product manufactured by LG.

$44.89

Over 100 In Stock

Diagram #
00F130NA

LG DLE3500W Hi-Limit Thermostat - Genuine OEM

Hi-Limit Thermostat for LG DLE3500W Dryer. Genuine product manufactured by LG.

$17.89

Over 100 In Stock

Diagram #
00K340NA

LG DLE3500W Moisture Sensor - Genuine OEM

Moisture Sensor for LG DLE3500W Dryer. Genuine product manufactured by LG.

$19.89

Over 100 In Stock

Diagram #
00K550NA

LG DLE3500W Thermistor Assembly - Genuine OEM

Thermistor Assembly for LG DLE3500W Dryer. Genuine product manufactured by LG.

$36.89

6 In Stock

Diagram #
00A330NA

LG DLE3500W Door Switch Assembly - Genuine OEM

Door Switch Assembly for LG DLE3500W Dryer. Genuine product manufactured by LG.

$36.89

22 In Stock

Diagram #
00K651NA

LG DLE3500W Idler Pulley - Genuine OEM

Idler Pulley for LG DLE3500W Dryer. Genuine product manufactured by LG.

$23.89

Over 50 In Stock

Diagram #
00K251NA

LG DLE3500W Drum Support Roller - Genuine OEM

Drum Support Roller for LG DLE3500W Dryer. Genuine product manufactured by LG.

$130.89

Over 100 In Stock

Diagram #
00K250NA

LG DLE3500W Drum Support Roller Assembly - Genuine OEM

Drum Support Roller Assembly for LG DLE3500W Dryer. Genuine product manufactured by LG.

$130.89

Over 100 In Stock

Diagram #
00K560NA

LG DLE3500W Thermostat - Genuine OEM

Thermostat for LG DLE3500W Dryer. Genuine product manufactured by LG.

$37.89

Over 100 In Stock

Diagram #
00K515NA

LG DLE3500W Blower Wheel Retainer Assembly - Genuine OEM

Blower Wheel Retainer Assembly for LG DLE3500W Dryer. Genuine product manufactured by LG.

$15.89

22 In Stock

Diagram #
00K330NA

LG DLE3500W Lint Filter Guide - Genuine OEM

Lint Filter Guide for LG DLE3500W Dryer. Genuine product manufactured by LG.

$24.89

Over 50 In Stock

Diagram #
00K120NA

LG DLE3500W Drum Baffle - Genuine OEM

Drum Baffle for LG DLE3500W Dryer. Genuine product manufactured by LG.

$42.89

1 In Stock

Diagram #
00K530NA

LG DLE3500W Exhaust Duct - Genuine OEM

Exhaust Duct for LG DLE3500W Dryer. Genuine product manufactured by LG.

$37.89

4 In Stock

Diagram #
00A130NA

LG DLE3500W Electronic Main Control Board - Genuine OEM

Electronic Main Control Board for LG DLE3500W Dryer. Genuine product manufactured by LG.

$229.89

4 In Stock

Diagram #
00A410NA

LG DLE3500W Door Latch Hook - Genuine OEM

Door Latch Hook for LG DLE3500W Dryer. Genuine product manufactured by LG.

$30.89

23 In Stock

Diagram #
00K360NA

LG DLE3500W Moisture Sensor Holder - Genuine OEM

Moisture Sensor Holder for LG DLE3500W Dryer. Genuine product manufactured by LG.

$15.89

32 In Stock

Diagram #
00K335NA

LG DLE3500W Lint Filter Cover - Genuine OEM

Lint Filter Cover for LG DLE3500W Dryer. Genuine product manufactured by LG.

$28.89

23 In Stock

Diagram #
00K310NA

Lint Screen/Filter (OEM)

The Lint Filter Assembly is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .

Color: Gray
Measures: about 12 in wide by 11 in high
Note: If your filter won't seat all the way down in the housing, order filter ADQ56656403. Due to manufacturer changes, in some cases, the filter guide MEA49050001 and filter cover MCK66787901 may also need to be replaced.

$30.89

Over 100 In Stock
