Parts Diagram for Whirlpool DUL300XTLT2 Dishwasher: 05 - HEATER PARTS
See parts diagram(s) for Whirlpool DUL300XTLT2 Dishwasher. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
View Popular
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL PARTS
03 - DOOR AND LATCH PARTS
04 - LOWER WASHARM PARTS
05 - HEATER PARTS
06 - FILL AND OVERFILL PARTS
07 - TUB AND FRAME PARTS
08 - PUMP AND MOTOR PARTS
09 - UPPER RACK AND TRACK PARTS
10 - UPPER WASH AND RINSE PARTS
11 - LOWER RACK PARTS
12 - MISCELLANEOUS PARTS OPTIONAL PARTS (NOT INCLUDED)
Parts for your

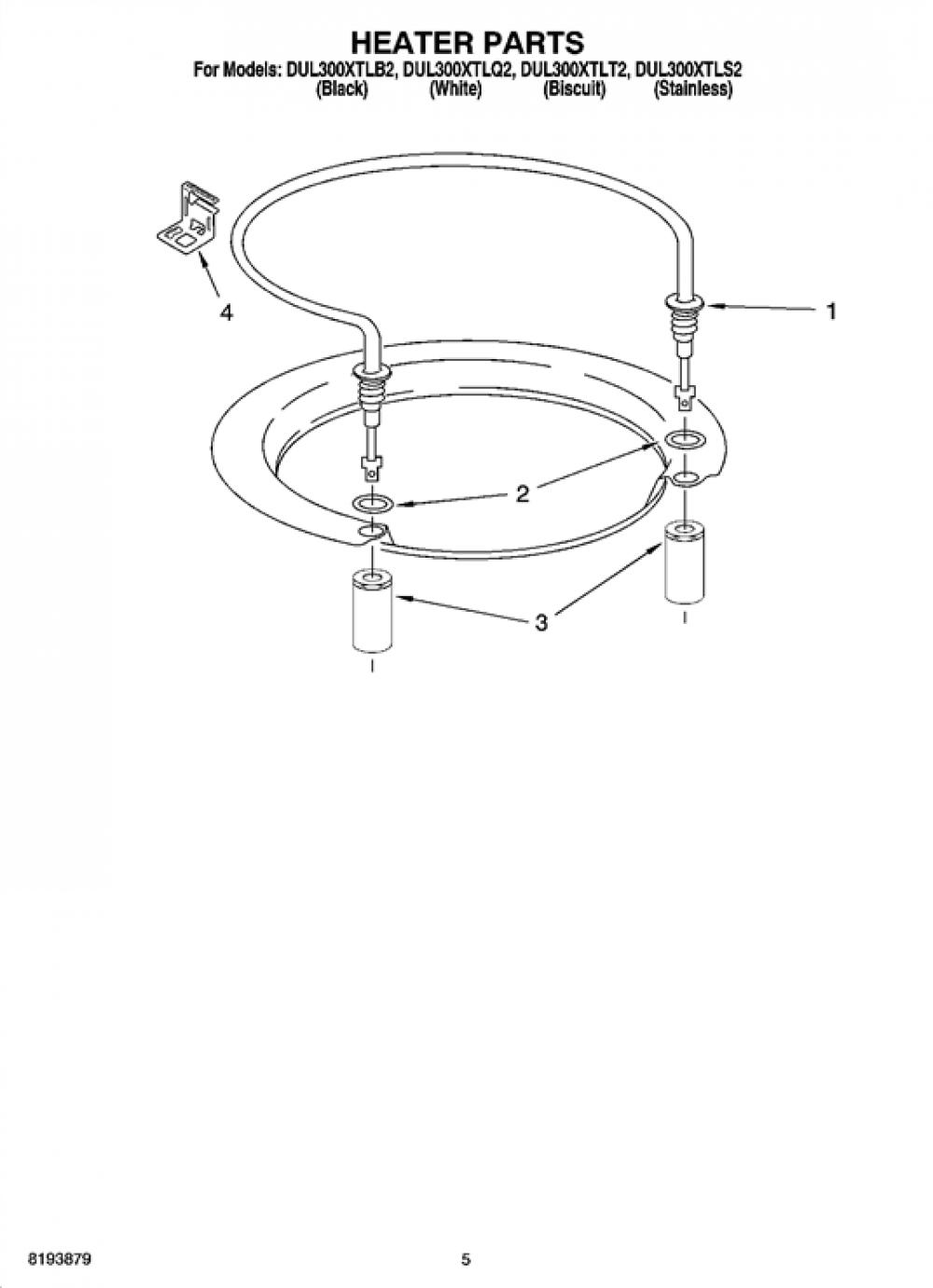

Whirlpool DUL300XTLT2 Dishwasher 05 - HEATER PARTS
Heater for Whirlpool DUL300XTLT2 Dishwasher. Genuine product manufactured by Whirlpool. Part heats water and assists in drying the dishes for plastic tubs.
The Washer is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Terminal Nut is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
Circulation Pump Motor for Whirlpool DUL300XTLT2 Dishwasher. Genuine product manufactured by Whirlpool. Spins the impeller of the circulation pump, which is used to move the water through the spray arms during the wash cycle.
Door Gasket and Strike Kit for Whirlpool DUL300XTLT2 Dishwasher. Genuine product manufactured by Whirlpool. Dishwasher door gasket kit includes new strike for door latch. Look for tears, gaps or cuts in the gasket that could cause a dishwasher door leak.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Door Hinge is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Toe Panel is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Actuator is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Fuse Kit is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Latch Bolt is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Cap is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Washer is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Terminal Nut is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Tube Nut is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Clamp is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Spring is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Clip is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Clamp is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Tab-Sump is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Capacitor is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Stop is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Armspray is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Touch Up Paint is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool White Touch-Up Spray Paint is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Spray Paint is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Power Cord Kit is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Drain Hose is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
