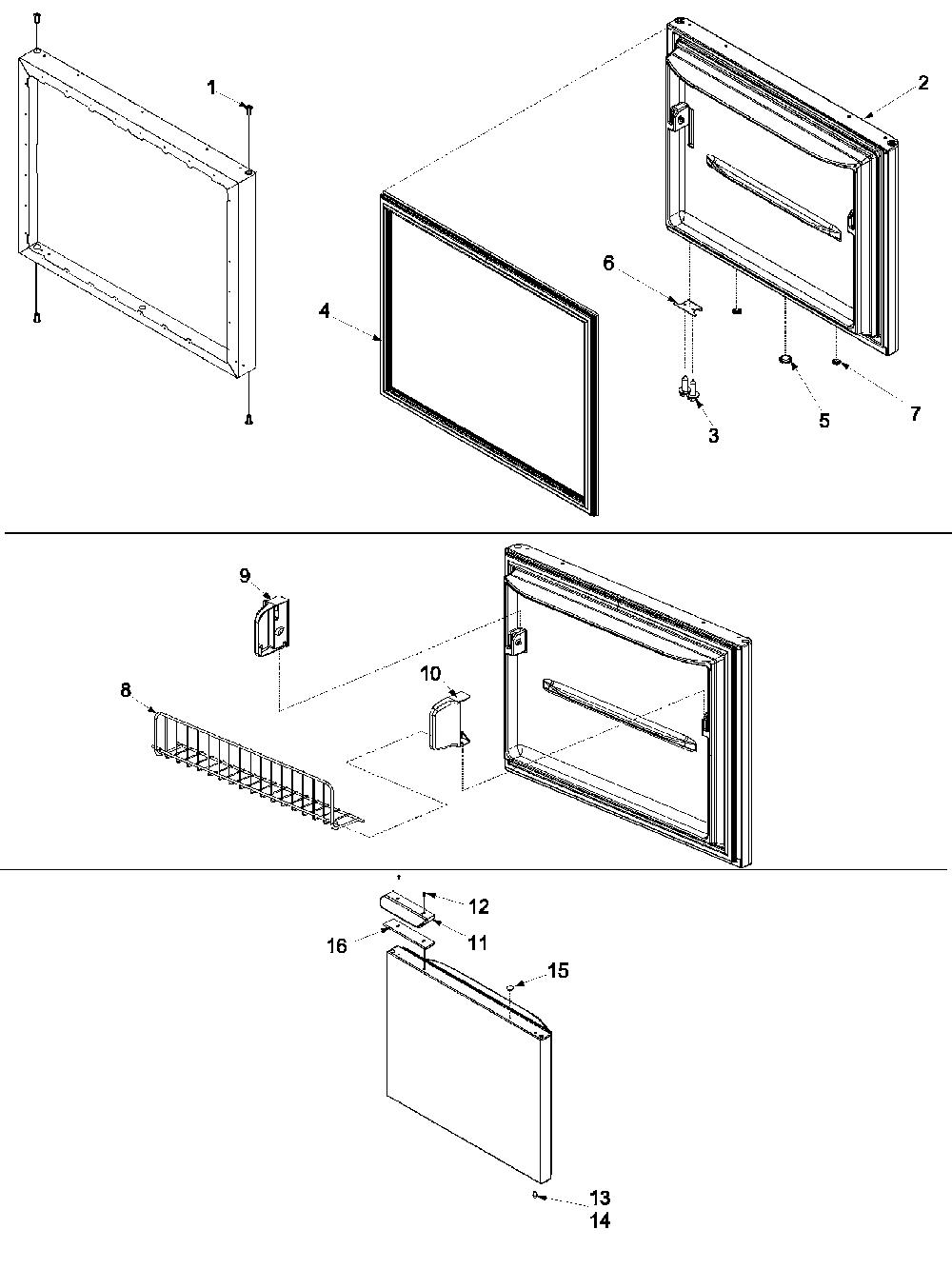

Parts Diagram for Maytag MBB2254GEQ-PMBB2254GC0: Freezer Door
See parts diagram(s) for Maytag MBB2254GEQ-PMBB2254GC0. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
