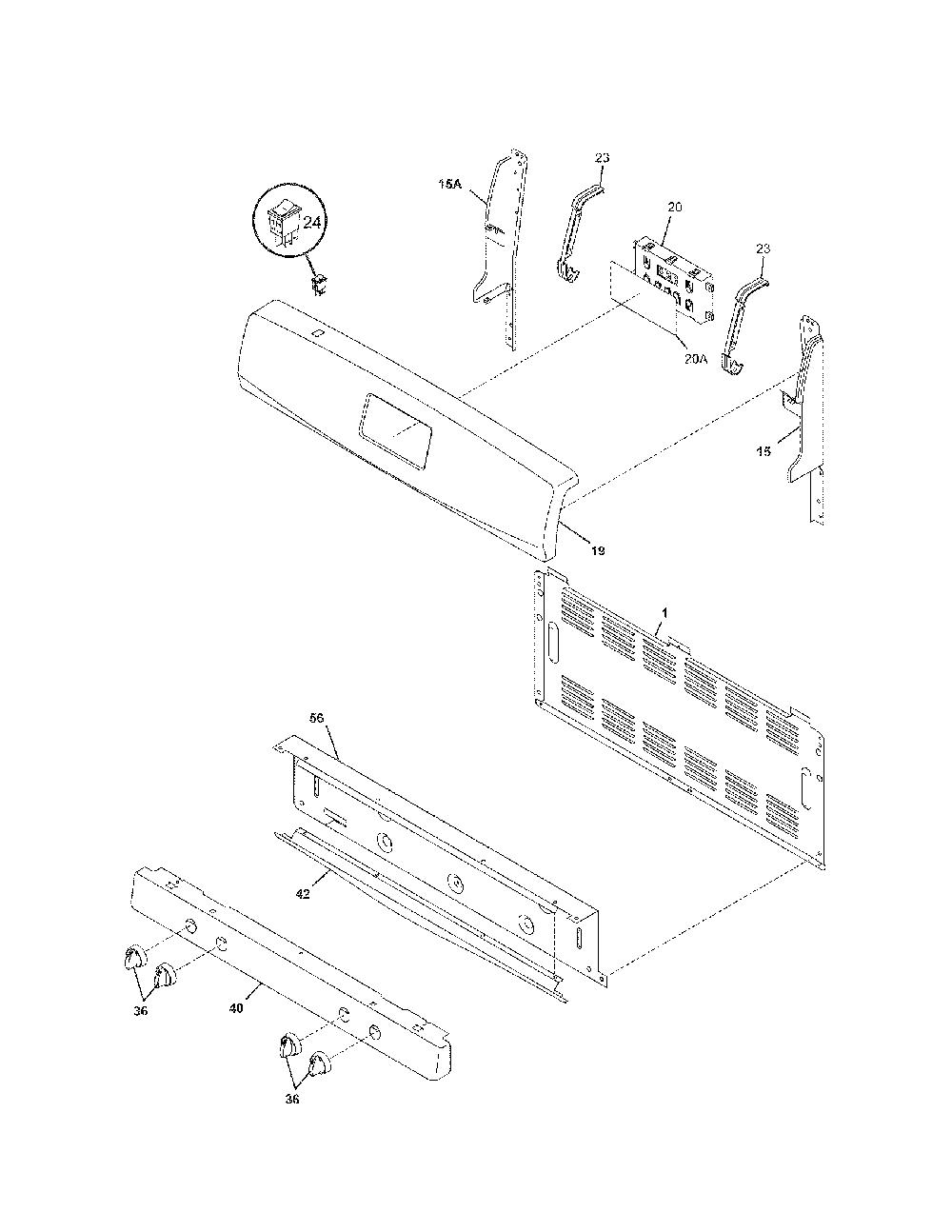

Parts Diagram for Kenmore 790.71541601 Range - Oven/Stove: Backguard
See parts diagram(s) for Kenmore 790.71541601 Range - Oven/Stove. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
View Popular
Backguard
Burner
Body
Top/Drawer
Door
Parts for your
Kenmore 790.71541601 Range - Oven/Stove Backguard
The Screw is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
Control Board Overlay Panel (Black) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Control Board and Clock/Timer for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
The Overlay is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
Control Knob - Black for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Pressure Regulator for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Baking/Oven Rack for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Oven Insulation Wrap for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Natural Gas Surface Burner Orifice for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Conversion Kit to LP for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
40w Light Bulb (temperature resistant) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Ignitor/Orifice Assembly for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Burner Cap - 2.75inches for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Broiler Drawer Base/Carriage (Black) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Burner Drip Pan (12k, Black) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Touchpad/Control Panel Overlay (Black) for Kenmore 790.71541601 Range - Oven/Stove. Genuine product manufactured by Kenmore. Note: This is the overlay for the touchpad/control panel, the control board is not included.
Front Large Burner Igniter/Orifice Assembly for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Spark/Igniter Module w/ Wiring Harness for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Oven Door Handle (Black) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Gas Safety Valve for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Outer Oven Door Glass Panel (Black) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Top Burner Orifice (Rear Right) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Smart Choice Touch Up Paint (Black, 0.6oz) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Oven Igniter (3.72 in) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Flat Norton style oven igniter. Length - 3.72 in. Replaces any flat oven igniter with a 3.2-3.6 amperage draw (excluding blue ceramic igniters).
Oven Back Insulation (Approx. 29 x 14in) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Surface Burner Cap (Rear,Right) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Temperature Sensor for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Burner Cap (12k, Black) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Oven Door Vent Trim (Black) for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Regulator Gas Supply Tube for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Broiler Pan Assembly for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Door Trim Vent for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Burner Valve - 9.5k BTU for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Light Rocker Switch for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
Top Burner Orifice for Kenmore 790.71541601 Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your Kenmore 790.71541601.
