Bosch SHU66C06 dishwasher: Base Parts

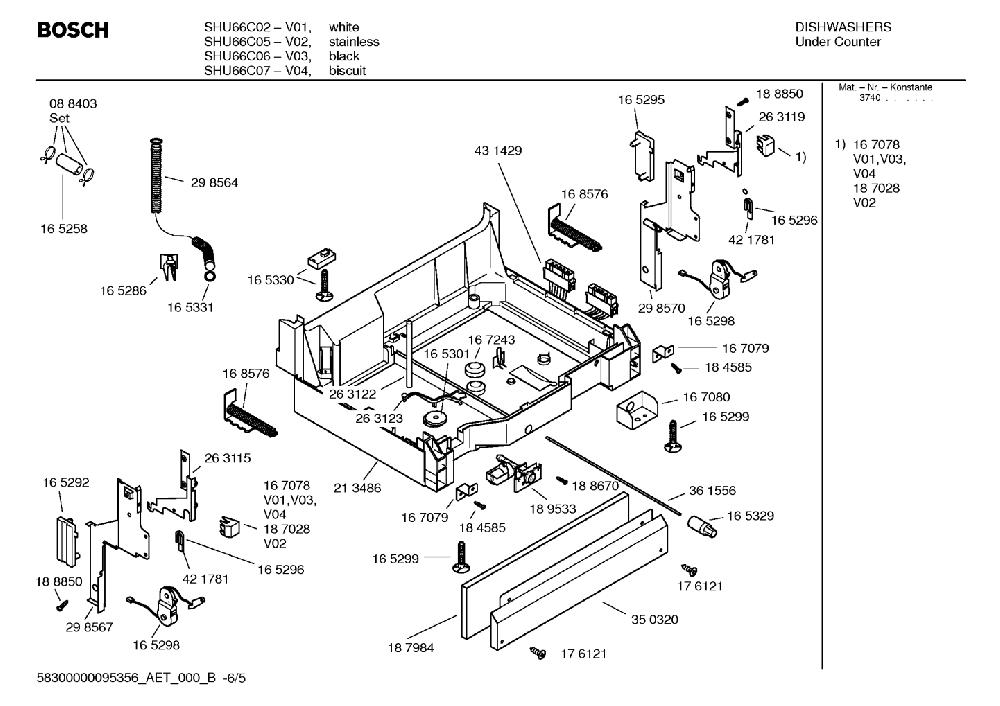

See parts diagram(s) for Bosch SHU66C06 dishwasher. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
Dispenser Actuator for Bosch SHU66C06 dishwasher. Genuine product manufactured by Bosch. Detergent dispenser actuator opens the dispenser cover to release detergent and rinse aid during the dishwashing cycle.
Unplug the dishwasher and shut off the water supply before installing this part. Wear work gloves to protect your hands.
Door Latch for Bosch SHU66C06 dishwasher. Genuine product manufactured by Bosch. Door latch is at the top of the dishwasher door and keeps the door closed when the dishwasher is running.
Unplug the dishwasher or shut off the house circuit breaker before installing this part. Wear work gloves to protect your hands.
Pump to Sump Gasket for Bosch SHU66C06 dishwasher. Genuine product manufactured by Bosch. Prevents leaks between the circulation pump and the tub. Disconnect the power supply to the dishwasher before installing this part. Wear work gloves to protect your hands.
Water Level Sensor for Bosch SHU66C06 dishwasher. Genuine product manufactured by Bosch.
This water level sensor (part number 00499500) is for dishwashers.
Water level sensor 00499500 monitors and controls the water fill level.
Unplug the dishwasher and shut off the water supply before installing this part.
Sump to Water Inlet Hose for Bosch SHU66C06 dishwasher. Genuine product manufactured by Bosch.
Sump to Water Inlet Hose carries drain water from the dishwasher to the drain.
Shut off the water supply and unplug the dishwasher before installing this part. Follow the instructions in the installation guide to correctly install the new drain hose. Wear work gloves to protect your hands during this repair.
Upper Dishrack for Bosch SHU66C06 dishwasher. Genuine product manufactured by Bosch. Note: Includes center spray arm and tube assembly. Color: platinum.
Tine Clip Kit for Bosch SHU66C06 dishwasher. Genuine product manufactured by Bosch. Tine row pivot clip attaches the tine row to the dishrack and allows the tine row to pivot up and down.
