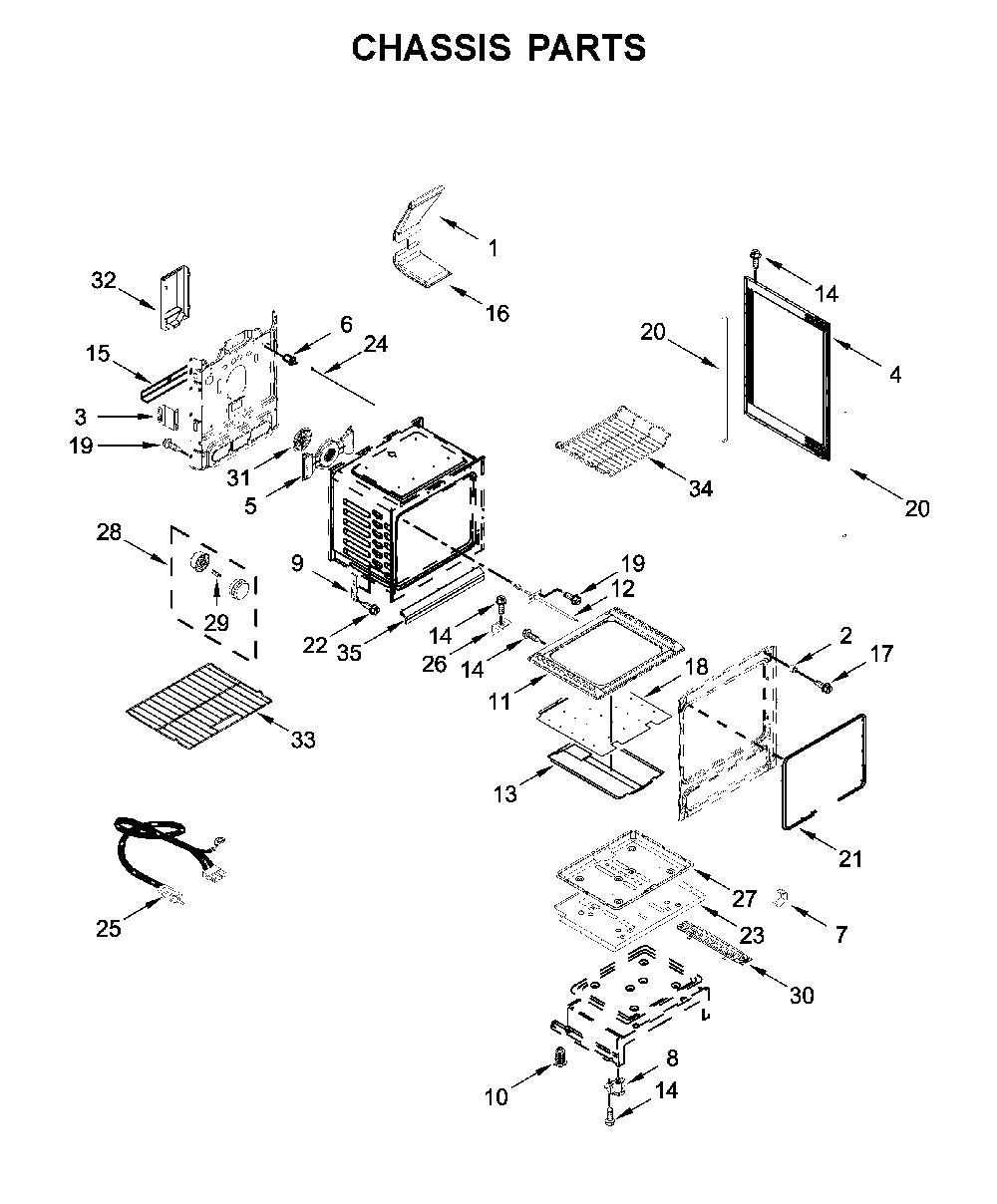

KitchenAid KFGG500EBS3 Range - Oven/Stove Chassis Parts
Side Panel (Black) for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
The Light Switch is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
Leveling Leg (Front) for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
The Hinge is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
Leveling Leg/Foot for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Oven Bottom Liner-Panel for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Oven Chassis Temperature Sensor for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Panel Baffle - Bottom for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
The Screw is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Screw is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
Door Gasket for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
The Screw is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Power Cord is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
Range Light Socket Assembly for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
40w Halogen Light Bulb for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Convection Fan Assembly for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Oven Chassis Wire Rack for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Spark Module for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Bake Igniter for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Orifice Spud (Front,Left) for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
LP Conversion Kit for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Broil Gas Supply Tube for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Mounting Bracket for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Knob Bezel for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Nameplate (Stainless) for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
Oven Spark Module for KitchenAid KFGG500EBS3 Range - Oven/Stove. Genuine Product, Whirlpool manufactured the original product for your KitchenAid KFGG500EBS3.
