Parts Diagram for Amana TX22S3E/MFG# P1196003WE Refrigerator: Compressor Compartment
See parts diagram(s) for Amana TX22S3E/MFG# P1196003WE Refrigerator. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
View Popular
Freezer Door
Refrigerator Door
Cabinet Shelving
Evaporator Area
Divider Block
Compressor Compartment
Cabinet Bottom
Cabinet Back
Control Panel
Parts for your

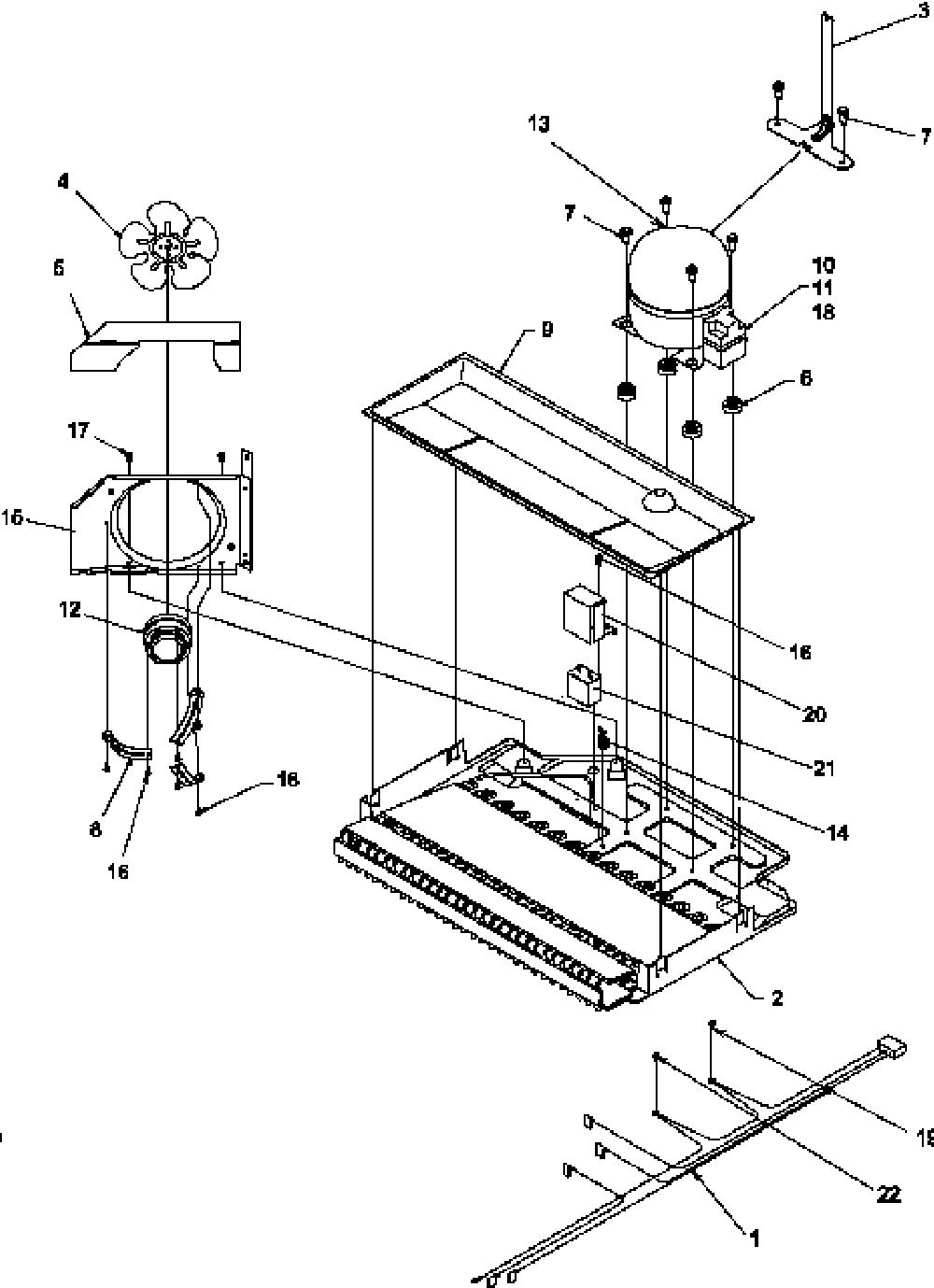

Amana TX22S3E/MFG# P1196003WE Refrigerator Compressor Compartment
The Overload is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Start Device is needed when repairing your appliance and is a genuine OEM (Original Equipment Manufacturer) part from .
Eventually parts can wear out on your appliance, when that happens trust Genuine Replacement Parts to have the replacement part you need to fix your appliance. We are one of the top online options for replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
Condenser Fan Motor Kit - 2 Watt, 115 volt for Amana TX22S3E/MFG# P1196003WE Refrigerator. Genuine product manufactured by Amana. 2 Watt, 115 volt, clockwise rotation. Includes: hardware, instructions.
Note: 833697 has been discontinued by the manufacturer. A substitution may be shipped in lieu of this product. The substitution may have a different design, but it will still be compatible with the same appliance models as the original part. It is not uncommon for manufacturers to discontinue parts and create substitutions. While the original part(s) and their substitution(s) may vary in appearance, they possess the same functionality. Please verify that your appliance model is compatible with this part before finalizing your order. GRP is not responsible for incorrect parts ordered.
Compressor for Amana TX22S3E/MFG# P1196003WE Refrigerator. Genuine Product, Whirlpool manufactured the original product for your Amana TX22S3E/MFG# P1196003WE.
Compressor Run Capacitor for Amana TX22S3E/MFG# P1196003WE Refrigerator. Genuine Product, Whirlpool manufactured the original product for your Amana TX22S3E/MFG# P1196003WE.
Evaporator Fan Motor Kit for Amana TX22S3E/MFG# P1196003WE Refrigerator. Genuine Product, Whirlpool manufactured the original product for your Amana TX22S3E/MFG# P1196003WE.
Roller Wheel Axle Pin for Amana TX22S3E/MFG# P1196003WE Refrigerator. Genuine Product, Whirlpool manufactured the original product for your Amana TX22S3E/MFG# P1196003WE.
Evaporator Fan Blade Grommet for Amana TX22S3E/MFG# P1196003WE Refrigerator. Genuine Product, Whirlpool manufactured the original product for your Amana TX22S3E/MFG# P1196003WE.
Temperature Control Thermostat for Amana TX22S3E/MFG# P1196003WE Refrigerator. Genuine Product, Whirlpool manufactured the original product for your Amana TX22S3E/MFG# P1196003WE.
Door Switch Assembly (White) for Amana TX22S3E/MFG# P1196003WE Refrigerator. Genuine Product, Whirlpool manufactured the original product for your Amana TX22S3E/MFG# P1196003WE.
The Whirlpool Door Hinge Bushing is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw Kit is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Gasket is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Non-Metal Shim is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Pin is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Brake Foot is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Support Post is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Tray is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Blade Fan is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Overload is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Start Device is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Plug is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Roller is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Rear Roller is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Screw is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
The Whirlpool Drier is needed when repairing your Whirlpool appliance and is a genuine OEM (Original Equipment Manufacturer) part from Whirlpool.
Eventually parts can wear out on your Whirlpool appliance, when that happens trust Genuine Replacement Parts to have the Whirlpool replacement part you need to fix your appliance. We are one of the top online options for Whirlpool replacement parts and repair. If you have the model number or part number of your appliance that is different than what is being shown, please enter it at the top search bar for best results.
This Whirlpool requires part when fixing your appliance. Follow the instructions in the owner's manual to install the part.
