Parts Diagram for:

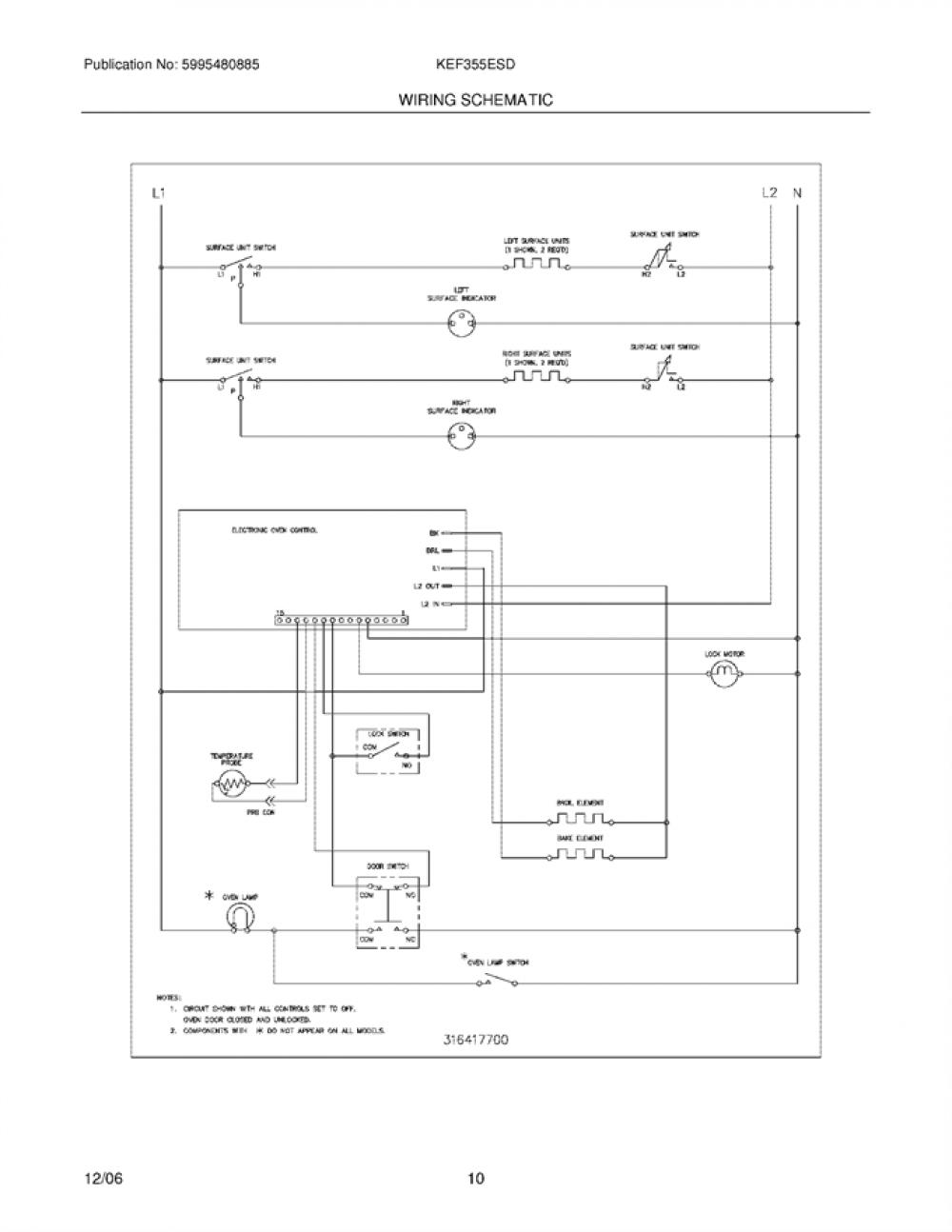

Range - Oven/Stove (electric) KEF355ESD: 10-WIRINGSCHEMATIC
See parts diagram(s) for Range - Oven/Stove (electric) KEF355ESD. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
View Popular
01-COVER
03-BACKGUARD
05-BODY
07-TOP/DRAWER
09-DOOR
10-WIRINGSCHEMATIC
11-WIRINGDIAGRAM
