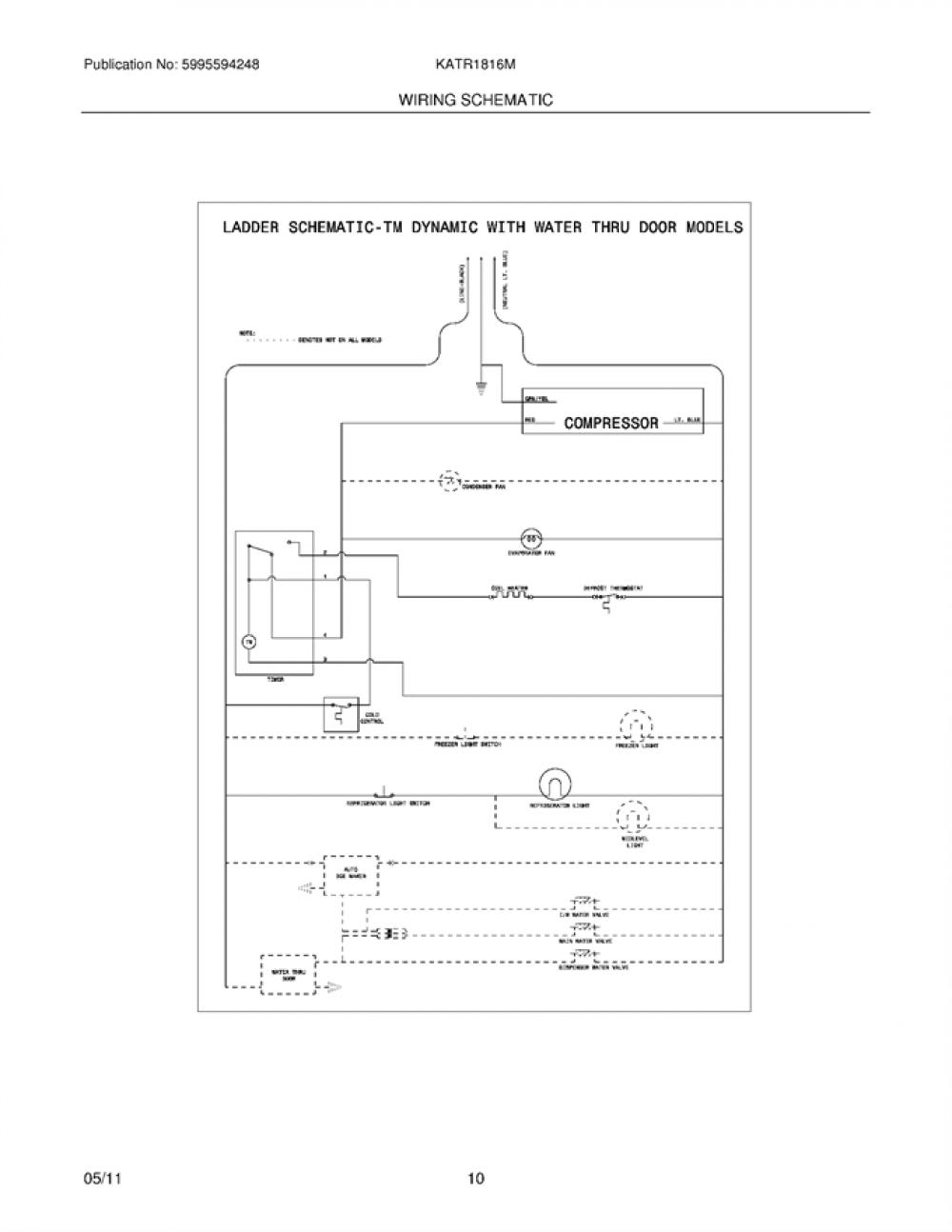

Parts Diagram for Refrigerator KATR1816MW0: 10-WIRINGSCHEMATIC
See parts diagram(s) for Refrigerator KATR1816MW0. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
Crisper Shelf Frame (no glass) for KATR1816MW0 Refrigerator. Genuine Product, Frigidaire manufactured the original product for your KATR1816MW0.
(34" x 22.63" x 4.38" - Does Not Include Glass Insert)
Glass Shelf (23.78in X 16.34in) for KATR1816MW0 Refrigerator. Genuine Product, Frigidaire manufactured the original product for your KATR1816MW0. The part measures 23.78" x 16.34"
Refrigerator Compressor Starter Relay Device for KATR1816MW0 Refrigerator. Genuine Product, Frigidaire manufactured the original product for your KATR1816MW0.
Full Width Sliding Shelf Frame (25.5 X 16.25in, Upper) for KATR1816MW0 Refrigerator. Genuine Product, Frigidaire manufactured the original product for your KATR1816MW0. (25.5 X 16.25in)
Full Width Sliding Shelf Frame (Lower) for KATR1816MW0 Refrigerator. Genuine Product, Frigidaire manufactured the original product for your KATR1816MW0.
