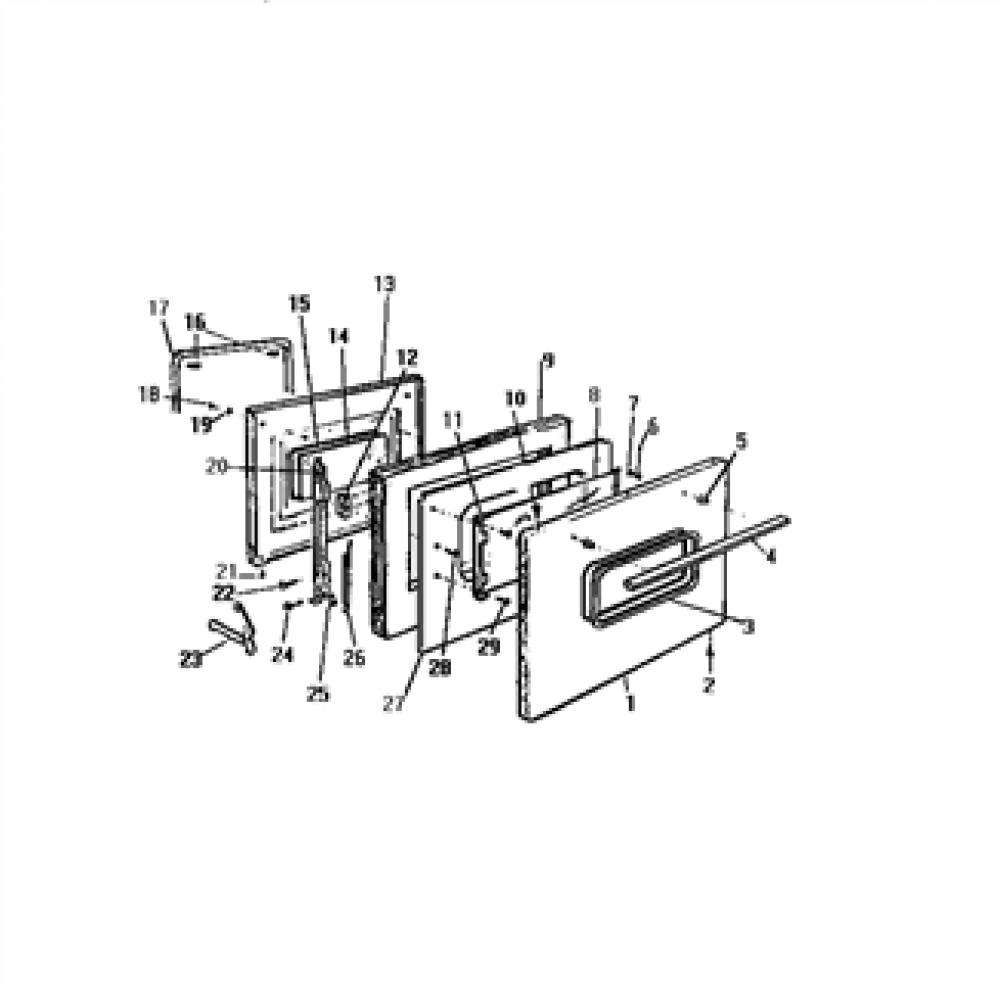

Parts Diagram for Electric Range - Oven/Stove KF520GDV2: 05-DOOR
See parts diagram(s) for Electric Range - Oven/Stove KF520GDV2. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.
View Popular
02-BACKGUARD
03-TOP/DRAWER
04-BODY,SIDEPANELS
05-DOOR
Electric Range - Oven/Stove KF520GDV2 Replacement Parts (OEM) 05-DOOR
Large 8-inch Surface Burner/Element for KF520GDV2 Electric Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your KF520GDV2.
Terminal Block Kit for KF520GDV2 Electric Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your KF520GDV2. Kit includes mounting screws and hex nuts. Block design may look different but will not affect performance.
Surface Burner Element (6 in) for KF520GDV2 Electric Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your KF520GDV2.
Surface Element Switch Kit for KF520GDV2 Electric Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your KF520GDV2.
Burner Drip Pan (Small, 6 In) for KF520GDV2 Electric Range - Oven/Stove. Genuine Product, Frigidaire manufactured the original product for your KF520GDV2.
