Replacement Parts for:
Samsung RSG309AARS/XAA-0002 Refrigerator Replacement Parts (OEM)

See parts diagram(s) for Samsung RSG309AARS/XAA-0002 Refrigerator. Use our parts diagrams to identify which parts need replacement and how to remove and replace parts.

Search

Middle Door Shelf Bin for Samsung RSG309AARS/XAA-0002 Refrigerator. Genuine product manufactured by Samsung.

Upper Hinge Cam Riser for Samsung RSG309AARS/XAA-0002 Refrigerator. Genuine product manufactured by Samsung.

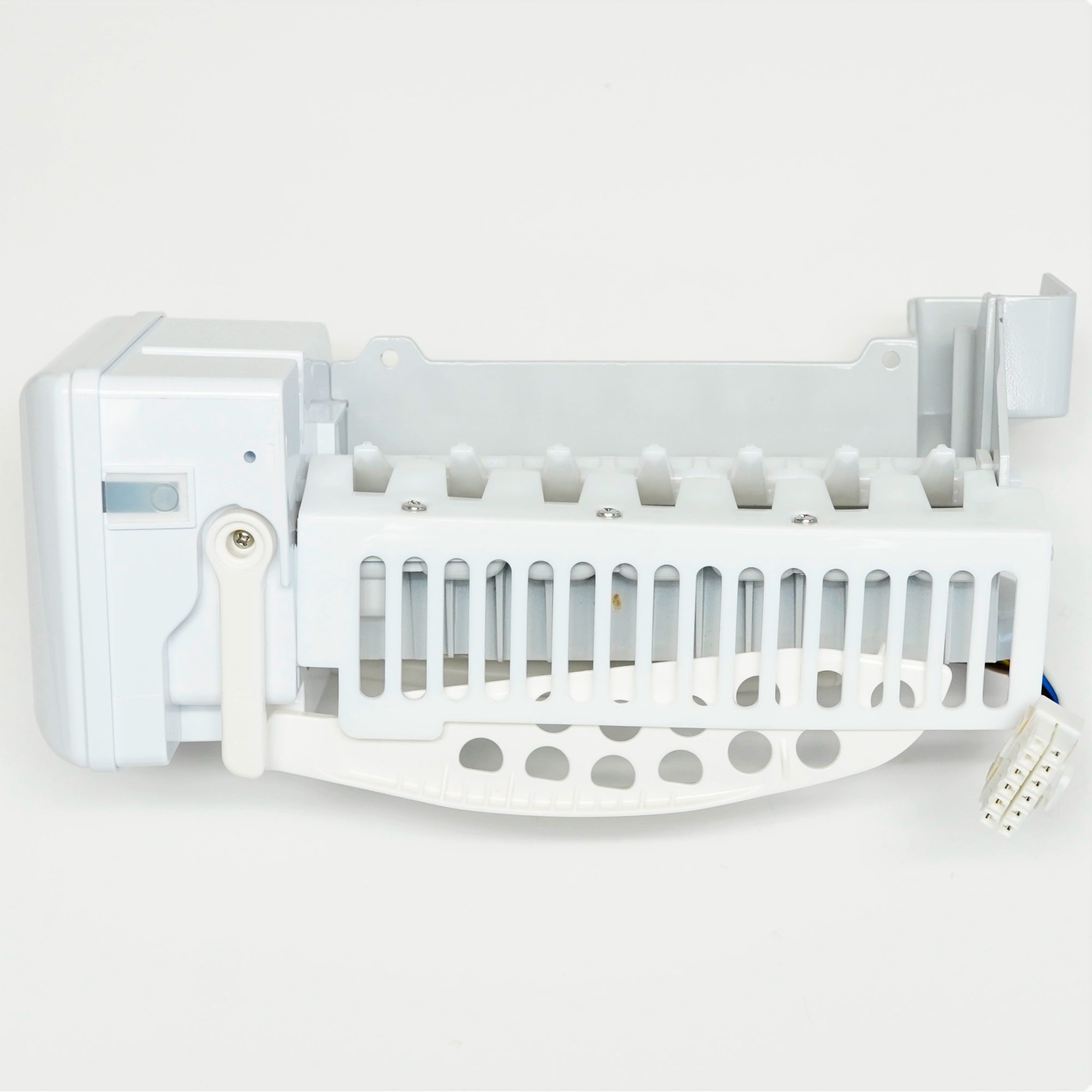

Ice Maker for Samsung RSG309AARS/XAA-0002 Refrigerator. Genuine product manufactured by Samsung. IMPORTANT NOTE:

You must re-use the plastic heater cover on the bottom (held on by 2 screws) of your current icemaker. If you wish to purchase a new heater cover, the part number is DA63-04355A.

Please check pin connections. Part number DA97-07549B has a 12 pin harness. If you have a 10 pin harness, order part number DA97-06364B.



SPECIAL NOTE:

Due to Samsung using different ice makers depending on the build date of certain model refrigerators, you must look at the blue tag on the bottom of your ice maker and read the part number starting with DA97-XXXXXX off of that tag to ensure you are ordering the correct ice maker.

Bottle Guard/Shelf for Samsung RSG309AARS/XAA-0002 Refrigerator. Genuine product manufactured by Samsung.

Lower Door Hinge Kit for Samsung RSG309AARS/XAA-0002 Refrigerator. Genuine product manufactured by Samsung.

Inverter Circuit Board Assembly for Samsung RSG309AARS/XAA-0002 Refrigerator. Genuine product manufactured by Samsung. Note: DO NOT order based only off of the model number on your appliance. This part may not be compatible with certain revision numbers. To locate the revision of your model, please find the model number sticker label and locate "REV. ##". Once you find the revision number please contact us to confirm it will be compatible with your appliance.

Door Interlock Switch (Grey) for Samsung RSG309AARS/XAA-0002 Refrigerator. Genuine product manufactured by Samsung.

Ice Chute Door and Funnel Assembly for Samsung RSG309AARS/XAA-0002 Refrigerator. Genuine product manufactured by Samsung.

Dispenser Drip Tray (Grey) for Samsung RSG309AARS/XAA-0002 Refrigerator. Genuine product manufactured by Samsung.

Ice Maker Heater Cover for Samsung RSG309AARS/XAA-0002 Refrigerator. Genuine product manufactured by Samsung.
